5.8GHz FPV Video Transmitter 5W Long Range for Drones

Name: 5.8GHz FPV Video Transmitter 5W Long Range for Drones
Brand: Kimpok Technology Co., Ltd
SKU: TX-5W
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Kimpok
Certification:	CE certificate
Model Number:	TX-5W

Detail Information

Place of Origin:

Shenzhen,China

Brand Name:

Kimpok

Certification:

CE certificate

Model Number:

TX-5W

Highlight:

High Light

Highlight:

5.8GHz FPV video transmitter

long range drone VTX

5W FPV transmitter for drones

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

L/C,T/T,Paypal

Supply Ability:

5000pcs/month

Product Description

4.9G 5.8G FPV VTX VRX 5W 5.8GHz Drone Video Transmitter Long Range Transmission

Product Details

Place of Origin: China

Brand Name: Kimpok technology

Certification: CE Certification

Model Number: TX-5W

Type: 5.8G 5W Video Transmitter

Technical Specifications

Transmit Power: 5W

Frequency: 4.9Ghz/5.8Ghz

Power: 12-36V DC

Power Supply: 7-36V DC

Channel: 16 Channels

Antenna Interface: MMCX

Key Features

Long Range Wireless Video Transmitter 5.8G FPV VTX VRX VTX VRX for Drone

Transmitter Specification

Modulate	Wideband FM Modulate
Video Format	NTSC/PAL
Antenna Connector	SMA Connector
Dimension	72.55018.5mm
Channel	56 Channels
Transmit power	5W
Frequency	4.9-5.8Ghz

Receiver Specification

Supply Current	130mA
RF input matching	50 ohm SMA
Video output voltage	1.0Vp_p 75Ω
Audio output voltage	1.0Vp_p 10KΩ
Dimension	505015mm
Weight	42.5g

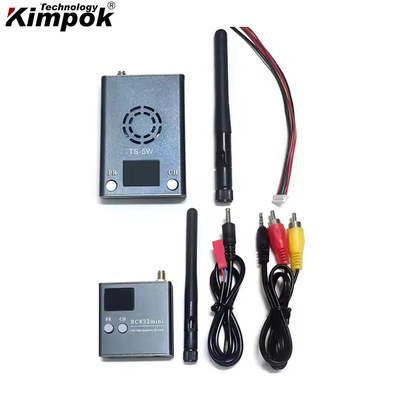

Product Images

Operation Method

After powering on, the digital display shows the last saved frequency band and channel
Adjust channels through CH button and frequency band through FR button
Ensure antenna is properly installed before powering on to prevent damage
Frequency band adjustment: Short press FR button (0.5s) to cycle through bands (1-7)
Channel adjustment: Short press CH button (0.5s) to cycle through channels (1-8)
Do not block the cooling fan window during operation

Company Introduction

Our transmitter and receiver systems feature anti-jamming technology, high quality image transmission, and long range capabilities. We specialize in research and innovation in wireless microwave transmission technology, offering customized solutions to meet specific requirements. Our commitment to quality and continuous improvement has established us as leaders in this field.
