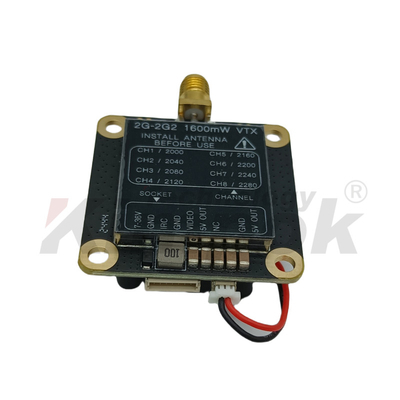

2.2G 1.6W FPV VTX 8CH 25mW 200mW 1600mW Drone Video Transmitter

Name: 2.2G 1.6W FPV VTX 8CH 25mW 200mW 1600mW Drone Video Transmitter
Brand: Kimpok Technology Co., Ltd
SKU: KP-22VTX16W
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Kimpok
Certification:	CE certificate
Model Number:	KP-22VTX16W

Detail Information

Place of Origin:

Shenzhen,China

Brand Name:

Kimpok

Certification:

CE certificate

Model Number:

KP-22VTX16W

Highlight:

High Light

Highlight:

FPV VTX drone transmitter

1.6W video transmitter

8CH FPV VTX

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

L/C,T/T,Paypal

Supply Ability:

5000pcs/month

Product Description

FPV 2.2G 1.6W VTX 2.2Ghz Video Transmitter and Receiver

Professional drone audio/video transmission system with multiple power outputs and channel options for FPV applications.

Key Features

8-channel wireless video transmitter
Adjustable power output: 25mW, 200mW, 1600mW
Supports IRC Tramp protocol with OSD parameter tuning
Wide voltage input: 7-36V DC (2-6S)
5V/0.5A voltage output
Compatible with FatShark and Skyzone VR headsets

Product Specifications

Transmitter (Sky End)

Parameter	Specification
Input Voltage	7-36V DC (2-6S)
Output Voltage	5V/0.5A
Weight	22g (without antenna)
Dimensions	37mm × 46mm × 17.5mm (including SMA head, fan)
Video Format	PAL/NTSC
Channels	8 channels (2000MHz to 2280MHz)
Transmission Power	33dBm±1dBm (Max)
Power Output	25mW, 200mW, 1600mW
Antenna Interface	SMA head outer tooth inner hole
Modulation Type	Frequency modulation

Receiver (VRX)

8-channel support
Compatible with FatShark and Skyzone VR headsets
High sensitivity reception: -97dBm
7-36V power input
5V voltage output
Touch switch for quick channel changes

Additional Information

Brand: Kimpok

Model: KP-22VTX16W

Certification: CE Certification

Origin: Shenzhen, China

Trading Information

Detail	Information
Minimum Order Quantity	1 piece
Price	Negotiable
Packaging	International standard
Delivery Time	3-7 work days
Payment Terms	Western Union, PayPal, T/T
Supply Ability	5000 pieces/month
