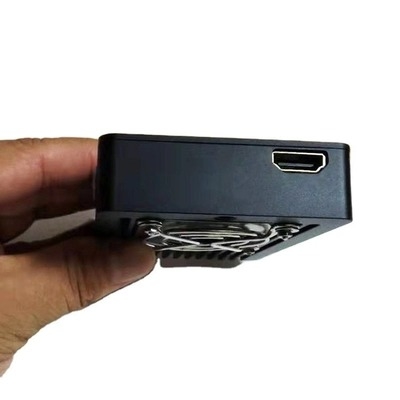

1W COFDM UAV Video Transmitter 300-900MHz with AES 128 Encryption

Name: 1W COFDM UAV Video Transmitter 300-900MHz with AES 128 Encryption
Brand: Kimpok Technology Co., Ltd
SKU: KP-HDT1W
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Kimpok
Certification:	CE certificate
Model Number:	KP-HDT1W

Detail Information

Place of Origin:

Shenzhen, China

Brand Name:

Kimpok

Certification:

CE certificate

Model Number:

KP-HDT1W

Highlight:

High Light

Highlight:

1W COFDM UAV transmitter with AES encryption

300-900MHz COFDM video transmitter

UAV video transmitter with 128-bit AES

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

L/C,T/T,Paypal

Supply Ability:

5000pcs/month

Product Description

300Mhz 900MHz Long Distance Wireless Video Audio Transmitter and Receiver with FEC 1/2 2/3 3/4 5/6 7/8 Consumption 40W

Product Overview

This 1080P HD transmitter is a powerful HD transmission system using COFDM (multi-carrier modulation) technology, capable of transmitting stable full-HD digital video signals in high-speed mobile environments and urban areas with heavy building obstructions.

Key Specifications

Brand: Kimpok Technology
Model: KP-HDT1W
Certification: CE Certified
Frequency Range: 300-900MHz (customizable)
Modulation: COFDM
Power Consumption: <40W
Encryption: AES 128-bit
Supports full HD 1080P H.264 encoding
HDMI/SDI inputs with stereo audio support

Transmitter Parameters

Parameter	Specification
Frequency	300-900Mhz or other frequency customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Transfer rate	6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power	1 watt
Video input	HDM-I
Video coding	MPEG-4/H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	729832mm
Weight	190g without battery; 250g with battery
Box colour	Black
Antenna port	N type

Receiver Parameters

Parameter	Specification
Frequency	300-900Mhz (option) or other frequency customized
Bandwidth	2/3/4/5/6/7/8MHz (option)
RF input level	-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance	50Ω
RF input type	N type
Modulation	COFDM
Constellation	QPSK,16QAM,64QAM(adjustable)
FEC	1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier	2k
Guard Interval	1/32,1/16,1/8,1/4(adjustable)
Video coding	MPEG-4/H.264
Screen	4:3 16:9
Video resolution	1920*1080P/I@4Mhz
Audio output	Stereo unbalance 300/ 200mv
AV output	2 Audio output + 2 Video output; HDM-I
Working voltage	AC220V/DC12V <1A
Working temperature	-20℃~+50℃
Dimension	48330044mm
Weight	1.5kg

Trading Information

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging: International standard packing
Delivery Time: 3-7 work days
Payment Terms: T/T, PayPal, Alipay
Supply Ability: 5000/month

Product Images
