COFDM Wireless Video Transmitter 60-80W RF Power for Car to Car

Name: COFDM Wireless Video Transmitter 60-80W RF Power for Car to Car
Brand: Kimpok Technology Co., Ltd
SKU: KP-CM60H
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Kimpok
Certification:	CE certification
Model Number:	KP-CM60H

Detail Information

Place of Origin:

Shenzhen, China

Brand Name:

Kimpok

Certification:

CE certification

Model Number:

KP-CM60H

Highlight:

High Light

Highlight:

COFDM wireless video transmitter 60-80W

car to car video transmitter

high power RF video transmitter

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

L/C,T/T,Paypal

Supply Ability:

5000pcs/month

Product Description

200km 50km Long Range COFDM Wireless FPV HD SDI Transmitter for Car to Car with Adjustable RF Power Output

Product Overview

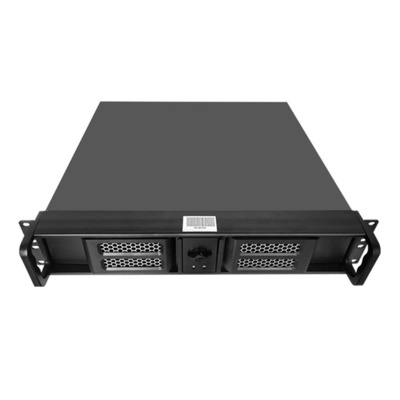

The KP-CM60H is a high-power RF device specifically designed for vehicle NLOS mobile digital image transmission. Featuring a standard 19-inch 2U dimension for easy installation in vehicles and boats, this transmitter supports one video channel and two audio channels with exceptional long-range transmission capabilities.

Key Specifications

Parameter	Specification
Place of Origin	China
Brand Name	Kimpok
Certification	CE Certification
Model Number	KP-CM60H
Frequency/AV	300-900MHz option or 1.2GHz; 2.4GHz; 5.8GHz
Frequency/DATA	433MHz
Modulation	COFDM 2K QPSK
RF Power Output	60-80W (adjustable)
Voltage	DC11-14.5V
Current	4.7A
Video Rate	15Mbps(MAX)

Technical Specifications

Parameter	Details
Constellation	QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Bandwidth	2/2.5/4/8M(adjustable)
Video Interface	HDMI; SDI; CVBS
Encryption	AES 128 bit / ALLTECH Basic scrambling
Video Compression	H.265/H.264
Resolution	1280720P / 19801080P
Operating Temperature	-25℃~55℃
Size	43042089mm
Weight	12kg

Key Features

COFDM modulation for stable transmission
H.264 video compression for DVD-quality video
Hard aluminum housing with built-in cooling fans
Mobile and NLOS (Non line-of-sight) transmission capability
AES 128-bit encryption for enhanced security
Low system latency
Modular design with compact structure
Multiple waveband options: VHF/L/S
Optional two-way voice communication support

Applications

Ideal for car-to-car, boat-to-boat, vehicle-to-fixed station, boat-to-fixed station, and helicopter-to-fixed station communications. Can function as a repeater with transmission ranges up to 200km LOS from air and 50km NLOS distance when used with omni-directional antenna.

Trading Information

Parameter	Details
Minimum Order Quantity	1 Piece
Price	Negotiation
Packaging Details	International standard packing
Delivery Time	3-7 work days
Payment Terms	T/T, PayPal, Alipay
Supply Ability	5000/month
