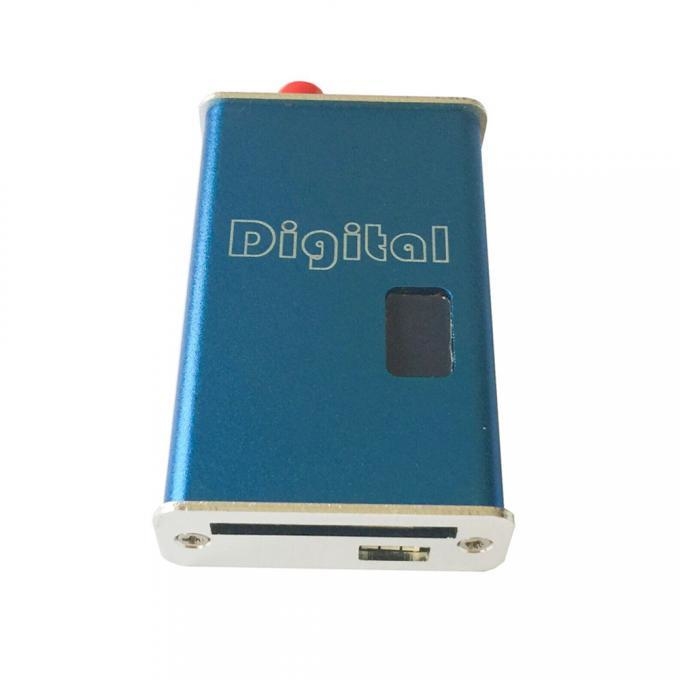

1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone

Name: 1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
Brand: Kimpok Technology Co., Ltd
SKU: KP-MN5A
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Kimpok
Certification:	CE certification
Model Number:	KP-MN5A

Detail Information

Place of Origin:

Shenzhen, China

Brand Name:

Kimpok

Certification:

CE certification

Model Number:

KP-MN5A

Highlight:

High Light

Highlight:

1.5Ghz FPV VTX for RC drone

5W mini wireless video transmitter

analog VTX with long-range transmission

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

T/T,L/C,Paypl

Supply Ability:

5000pcs/month

Product Description

1.5Ghz 5W FPV VTX Mini 1.5G 1.6G Wireless Video Transmitter for RC Racing Drone

Product Highlights

1.6G FPV VTX RC Racing Drone Wireless Video Transmitter
1.5Ghz frequency band for stable video transmission
Compact dimensions: 73×41×14mm
12 channels for flexible frequency selection
5000mW RF power for strong signal transmission

Technical Specifications

Specification	Details
Model Number	KP-MN5A
Frequency	1.5Ghz (1.4G/1.5G/1.6G)
RF Power	5000mW (1500mW transmit power)
Voltage	DC 12V
Current	600mA
Channels	12 Channels
Dimensions	73×41×14mm
Weight	90g (Transmitter: 82g)
Operating Temperature	-10℃ to +50℃
Certification	CE Certification

Installation Guide

The transmitter comes with 5 plugs for connecting to transmitter, camera, and power supply
Connect red plug to DC 12V/1000mA power source or battery
Connect white and yellow plugs to camera's audio and video inputs respectively
Connect black plug to camera's power input jack
Use control button to change receiver channel
Press and hold button to enable power saving mode
Ensure transmitter and receiver are set to same channel
