1.2Ghz 1.6W FPV VTX Wireless Video Transmitter for Drones

Name: 1.2Ghz 1.6W FPV VTX Wireless Video Transmitter for Drones
Brand: Kimpok Technology Co., Ltd
SKU: KP-12VTX1600M
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Kimpok
Certification:	CE certification
Model Number:	KP-12VTX1600M

Detail Information

Place of Origin:

Shenzhen, China

Brand Name:

Kimpok

Certification:

CE certification

Model Number:

KP-12VTX1600M

Highlight:

High Light

Highlight:

1.2Ghz FPV VTX for drones

1.6W wireless video transmitter

FPV VTX with high power output

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

L/C,T/T

Supply Ability:

5000pcs/month

Product Description

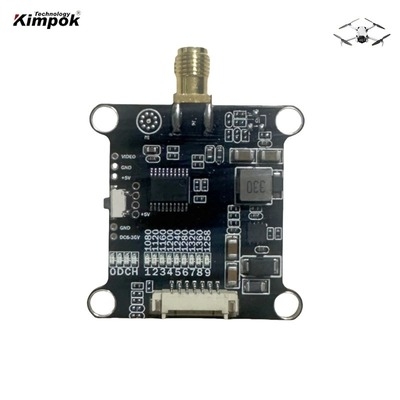

1.2G FPV VTX 1.2Ghz 1.6W Wireless Video Transmitter Module for Drone Digital Transmission

Product Overview

High-performance 1.2GHz wireless video transmitter module designed for FPV drone applications, featuring 1.6W RF power output and 8 selectable channels for reliable digital transmission.

Brand:

Kimpok

Model:

KP-12VTX1600M

Certification:

CE Certification

Origin:

China

Modulation:

Frequency:

1.2Ghz

RF Power:

1.6W

Channels:

8 Channels

Key Features

1.6W high-power FPV video transmitter
8 selectable channels for flexible operation
Precision PLL frequency control
Wide voltage input range (7-36V DC)
Compact and lightweight design (10g)
Supports both NTSC and PAL video formats
Excellent frequency stability (±100KHz typical)

Technical Specifications

Parameter	Specification
Frequency Band	1120-1360Mhz
Channel Frequency	1120/1160/1200/1240/1280/1320/1360/1258(MHz)
RF Power Options	0.1mW / 25mW / 200mW / 1600mW
Audio Sub-carrier	6.5MHz/6.0MHz
Frequency Stability	±100KHz (Typ.)
S/N Ratio	>70dBc
Antenna Port	50 Ohms
Operating Temperature	-10℃~+60℃
Dimensions	45.5mm(L) × 35.8mm(W) × 8.4mm(H)
Installation Hole Position	30.5mm × 30.5mm

Ordering Information

Minimum Order:

1 Piece

Price:

Negotiation

Packaging:

International standard

Delivery Time:

3-7 work days

Payment Terms:

T/T, PayPal, Alipay

Supply Capacity:

5000 piece/month

Important Usage Notes

Installation & Operation Guidelines

Ensure adequate space around the module for proper air circulation and cooling to prevent overheating and power reduction
Verify correct voltage range and polarity before powering on to avoid component damage
Always install antenna at the RF output terminal before powering on to extend module lifespan
Consult the instruction manual for proper wiring and optimal performance
