7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX
7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX
  • 7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX
  • 7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX
  • 7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX

7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX

Product Details:
Place of Origin: China
Brand Name: Kimpok
Certification: CE Cerfication
Model Number: 7.2G 3W
Document: 7.2G 3W 64CH VTX Manual.pdf
Detail Information
Place of Origin:
China
Brand Name:
Kimpok
Certification:
CE Cerfication
Model Number:
7.2G 3W
Document:
7.2G 3W 64CH VTX Manual.pdf
Number Of Channels:
64 Channels
Power Levels:
25mW/1000mW/3000mW
Input Voltage Range:
DC 7V-36V
Antenna Interface Type:
SMA Female Seat With Inner Hole
Smart Audio Protocol:
IRC Tramp
Highlight:

High Light

Highlight:

7.2GHz drone video transmitter

,

3W analog VTX

,

64-channel FPV transmitter

Trading Information
Minimum Order Quantity:
10
Price:
Negotiation
Packaging Details:
International Standard Packing
Delivery Time:
3-7 work days
Payment Terms:
L/C,Western Union
Supply Ability:
4,000 pieces per month
Product Description

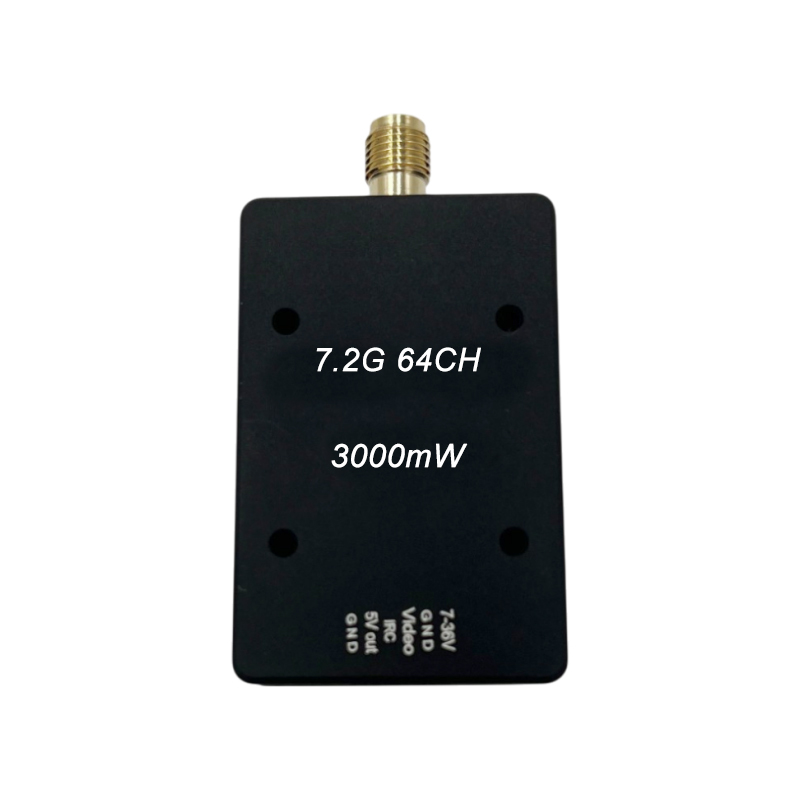

7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX
Product Overview
This 7.2GHz analog wireless video transmitter (VTX) is designed for drone FPV applications, featuring 3W maximum power and 64 channels within the 6110MHz-7210MHz frequency range. With wide voltage compatibility (7V-36V) and advanced heat dissipation, it delivers stable video transmission for various drone applications.
Key Features
  • Multi-Channel Operation: 64 channels across 8 frequency bands (A, B, E, F, R, P, H, U) for interference-free transmission
  • Adjustable Power: Three levels (25mW, 1000mW, 3000mW) with Pit mode for different flight distances
  • Wide Voltage Range: Compatible with 2-8S lithium batteries (7V-36V) without additional converters
  • Thermal Protection: Automatic power reduction when exceeding 100°C, returning to normal at 95°C
  • Efficient Cooling: Aluminum alloy housing with heat sink and cooling fan for stable operation
  • Standard Interfaces: SMA female antenna connector and 1.0 6P power/signal interface
Product Benefits
  • Enhanced Compatibility: Works with most FPV receivers and drone battery configurations
  • Reliable Performance: Temperature protection and robust cooling ensure stable transmission
  • Flexible Operation: Easy power and channel switching for different flight scenarios
  • Durable Construction: Aluminum alloy housing and protective features extend product life
Applications
  • FPV Racing: Clear video for high-speed flights with power options for indoor/outdoor use
  • Aerial Photography: Long-distance transmission for professional imaging
  • Agricultural Drones: Stable video feed for precision crop monitoring
  • Inspection Drones: Reliable transmission for infrastructure surveys
Technical Specifications
Feature Specification Application
Frequency Range 6110MHz-7210MHz (64 channels, 8 bands) All FPV scenarios, especially multi-device operations
Transmitting Power 25mW/1000mW/3000mW adjustable with Pit mode Short/medium/long range operations
Input Voltage DC 7V-36V (2-8S LiPo compatible) All drone types with 2-8S batteries
Cooling System Aluminum housing + heat sink + cooling fan High-power continuous operation
Smart Audio IRC Tramp protocol support Remote parameter adjustment
Physical Dimensions 53*28.85*16mm, 25.85g (20*20mm mounting) Compatible with most drone frames
7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX 0 7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX 1
