3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH

Name: 3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH
Brand: Kimpok Technology Co., Ltd
SKU: KP-T3335
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Kimpok
Certification:	CE
Model Number:	KP-T3335

Detail Information

Place of Origin:

China

Brand Name:

Kimpok

Certification:

Model Number:

KP-T3335

Type:

Wireless Video Transmitter

Frequency:

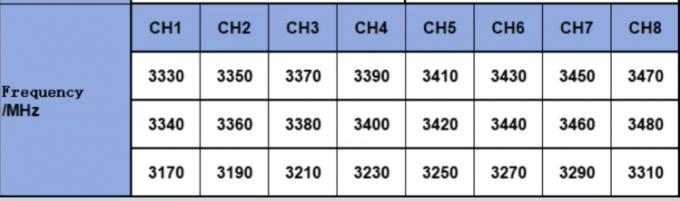

3.3G(3170M-3480M)

Protocol:

IRC Tramp

Channel:

24CH

RF Power:

3.5W(25mW,2000mW,3500mW)

Power Supply:

7-36V DC ,1.8A

Highlight:

High Light

Highlight:

3.3G drone video transmitter

FPV racing drone VTX

long distance analog transmitter

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiation

Packaging Details:

International Standard Packing

Delivery Time:

7 Working Days

Payment Terms:

T/T, Western Union,Paypal

Supply Ability:

3000pcs/month

Product Description

3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH

VTX Specification:

Item	VTX
Power Supply	DC7V-36V
Power	25mW,2000mW,3500mW
Control Protocol	IRC
Dimension	53.5mm32.5mm15.5mm
Weight	24.5g

VRX Specification:

Modulate	Wideband FM Modulate
Characteristics	Value			Units
Characteristics	Min.	TYP.	Max.
Input Voltage	3.5	5	6	V
Operating Temperature	-10	50	65	°C
Receive Sensitivity	-92	-95	-98	dBm
Frequency Stability	-100	--	+100	ppm
Input Impedance	--	50	--	Ω
Input Standing Wave Ratio	--	2: 1	3: 1
Video Output Impedance	--	75	--	Ω
Signal-to-Noise Ratio	--	38	--	dB
Frequency Response	50Hz ~ 6MHz(±5dB)
Antenna Connector	SMA(inner hole)
Weight	12.5 g
Dimensions(LxWxH)	702613 mm
