I. Specifications

1. 16CH 3.3G frequency range: (3170MHz-3470MHz);

2. Max power: 5W (25mW/5000mW, two level adjustable);

3. Input voltage: DC 7V-36V, supporting 2-8S battery input

4. Antenna connector: MCX

5. Smart audio: IRC Tramp

6. Heat-dissipating method: aluminum alloy shell, heat sink&fan

7. Hole spacing: 30.5mm*30.5mm /ø3.0mm

8. Dimension: 38mm*38mm*20.7mm

9. Weight: 38g

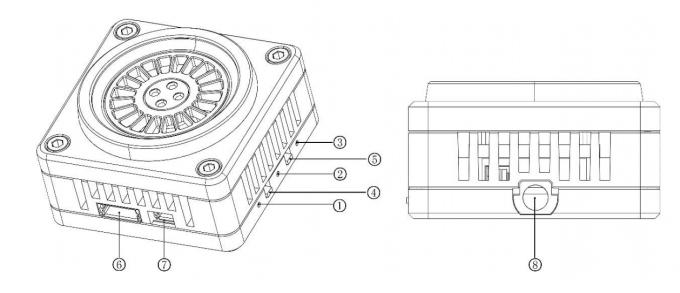

II. Function Introduction

1. Channel indicator: Red LED

2. Band indicator: Blue LED

3. Power indicator: Green LED

4. Band & Channel changer button

5. Power changer button

6. 1.0 6P Power connector

7. Cooling Fan Power Cable Holder

8. MCX antenna connector

Note: This VTX has a temperature protection function, when the temperature of the microphone is higher than 100 ℃, the transmitter power of this microphone will be reduced by one step, if the temperature is still higher than 100 ℃ continue to reduce the power by one step until the lowest power (25mW); at this time, the microphone temperature will be lowered, and when the temperature is lowered to 95 ℃, the transmitter power will be returned to the originally set power level.

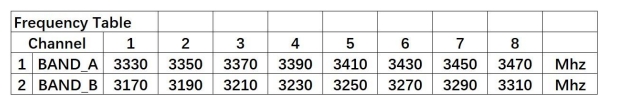

III. Frequency Table

VI. Notice for Use:

1. The VTX must be installed with space to ensure that the air convection around the module to ensure that the module heat dissipation; otherwise, the module overheating protection start, reduce the power to transmit, or even shut down the power to transmit.

2. It is recommended that before turning on the power, to ensure that the correct voltage range, positive and negative poles are correct, so as not to burn components.

3. It is recommended that before turning on the power, make sure that the RF RF output has been installed antenna, which can extend the life of the module.

4. Please read the instruction manual before use, so that you can correctly wire and extend the module service life.
