I.Specification:

1. 4.9GHz-6GHz 80 CH: (4990MHz-5945MHz)

2. Max power: 7W (1W/2.5W/5W/7W adjustable)

3. Input voltage: DC 15V-36V, supporting 2-8S battery input

4. Antenna connector: SMA inner hole

5. Smart audio: IRC Tramp

6. Heat-dissipating method: aluminum alloy shell, heat sink&fan

7. Hole spacing: 20mm*20mm/ø2mm

8. Dimension: 64.13mm*37.2mm*17.2mm

9. Weight: 56g

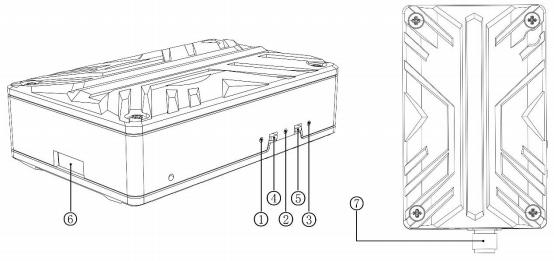

II.Function Intruction

1. Channel indicator: Red LED

2. Band indicator: Blue LED

3. Power indicator: Green LED

4. Band & Channel changer button

5. Power changer button

6. 1.0 6P Power connector

7. SMA Mother seat inner hole

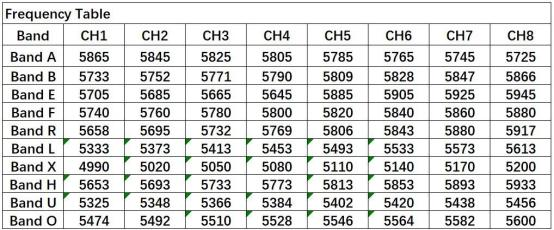

III.Frequency

IV.Notice for Use:

1. The VTX must be installed with space to ensure that the air convection around the module to ensure that the module heat dissipation; otherwise, the module overheating protection start, reduce the power to transmit, or even shut down the power to transmit.

2. It is recommended that before turning on the power, to ensure that the correct voltage range, positive and negative poles are correct, so as not to burn components.

3. It is recommended that before turning on the power, make sure that the RF RF output has been installed antenna, which can extend the life of the module.

4. Please read the instruction manual before use, so that you can correctly wire and extend the module service life.
