| Place of Origin: | Guangdong, China |
| Brand Name: | Kimpok Technology |
| Certification: | CE |
| Model Number: | GM-T5000H |

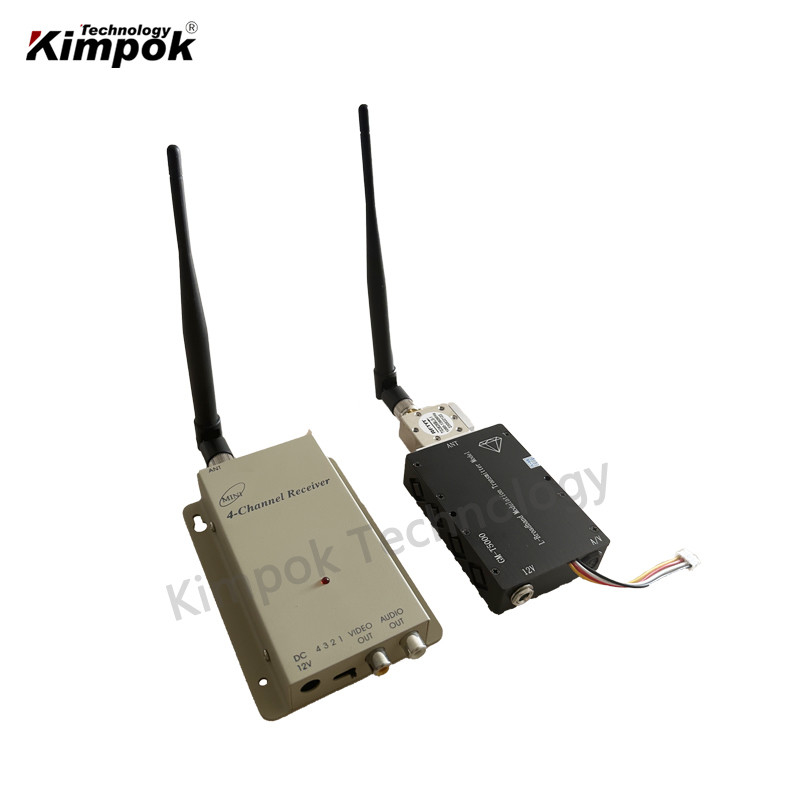

1.2G FPV VTX Transmitter and Receiver Wireless Video Transmission for Security Projects and FPV Systems
1.2GHz 5W Drone VTX Description:
The GM-T5000H wireless video transmission equipment appears to be a versatile and high-performance solution suitable for a wide range of applications. Its robust performance and larger power margin make it well-suited for challenging physical environments.
By utilizing a 0dB antenna as the base configuration, the device can reliably transmit 3-5km in open areas. However, when equipped with a high-gain directional antenna, the transmission range can extend to 8km in line-of-sight scenarios and up to 40km in air-to-ground setups.
The transmitter technology excels with efficient heat dissipation due to its special metal construction, enabling extended operational durations. The device simplifies connectivity with common AV interfaces, allowing seamless integration with cameras, VCD players, DVDs, and other devices featuring standard AV connections.
With its applications spanning from professional wireless CCTV installations to FPV systems, UAVs, RC aircraft, and even unmanned equipment in various industries, the GM-T5000H serves as a versatile solution for transmitting both video and data signals effectively.
If you have any specific questions regarding this equipment or its functionalities, feel free to ask for further details.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special project.
Specification:
| Voltage | DC 12V |
| Current | 700mA |
| Frequency | 1.2Ghz (1080MHz, 1120MHz, 1160MHz, 1200MHz) |
| Number of channels | 4 channels |
| Transmit Power | 5000mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Overall Configuration | Transmitter, AV cable, antenna |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 200g |
| Dimensions (L * W * H) | 95x50x20mm |
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
No MOQ limit, 1pc is acceptable.
OEM & ODM service.
We offer two-year-warranty and lifelong maintenance.
5-7 working days for regular model, and 20-30 working days for customized model.
We accept bank transfer, Western Union, PayPal, or cash payment.
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
