1.2Ghz 8W Drone Video Link Dula Antennas Long Range Video Transmission

1.2Ghz 8W FPV Video Transmitter 8 Channels Drone Video Link Dula Antennas Long Range Wireless Video Transmission

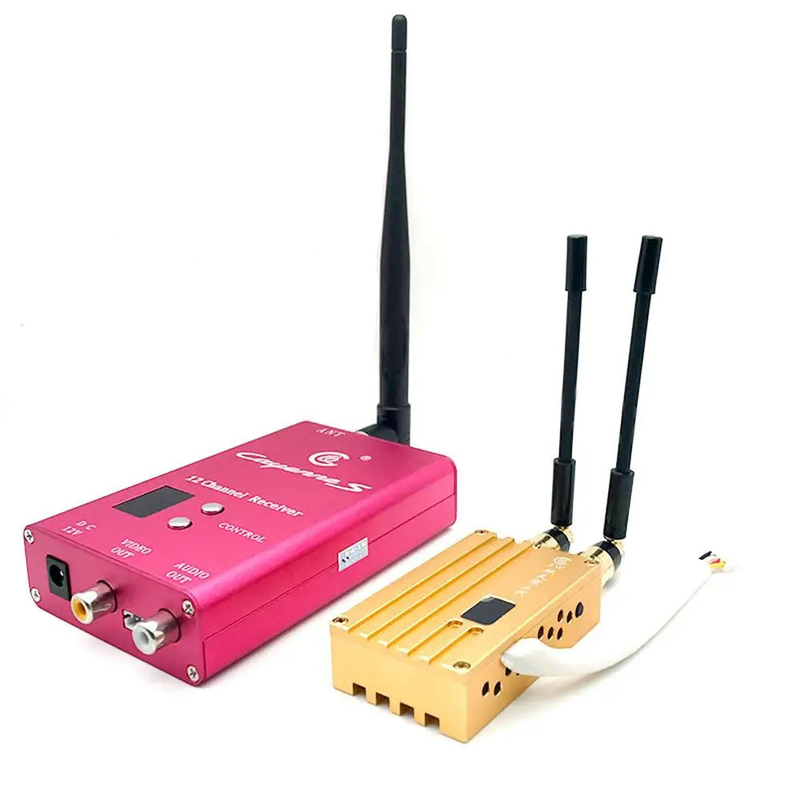

KP-12TX8WD Wireless Video Transmission Equipment

The KP-12TX8WD wireless video transmission equipment is a versatile solution known for its exceptional performance across various aspects. Key features include:

• Power Margin: With a large power margin, it is well-suited for complex physical environments.

• Transmission Range:

  • Utilizing the 0dB (Original small antenna) to its full capacity, it ensures a transmission range of approximately 8-15km in open areas.
  • By employing a high-gain directional antenna, the range can be extended to 20km Line of Sight (LOS) on the ground and up to 40km LOS from air to ground.

• Transmitter Technology: Equipped with superb transmitter technology and specially designed metal for improved heat dissipation, making it ideal for extended operational hours.

• Signal Input: Supports a common AV interface for signal input, enabling seamless compatibility with various devices such as cameras, VCDs, DVDs, and other conventional AV interfaces.

Applications:

• Ideal for professional wireless CCTV transmission and reception in CCTV security projects.
• Suitable for integration into FPV systems, UAVs, RC airplanes/helicopters.
• Capable of transmitting video and data signals simultaneously in unmanned vehicle applications.

40km Drone VTX parameter:

Receiver parameter:

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver
