| Place of Origin: | Guangdong, China |
| Brand Name: | Kimpok Technology |
| Certification: | CE |
| Model Number: | KP-600TX2W |

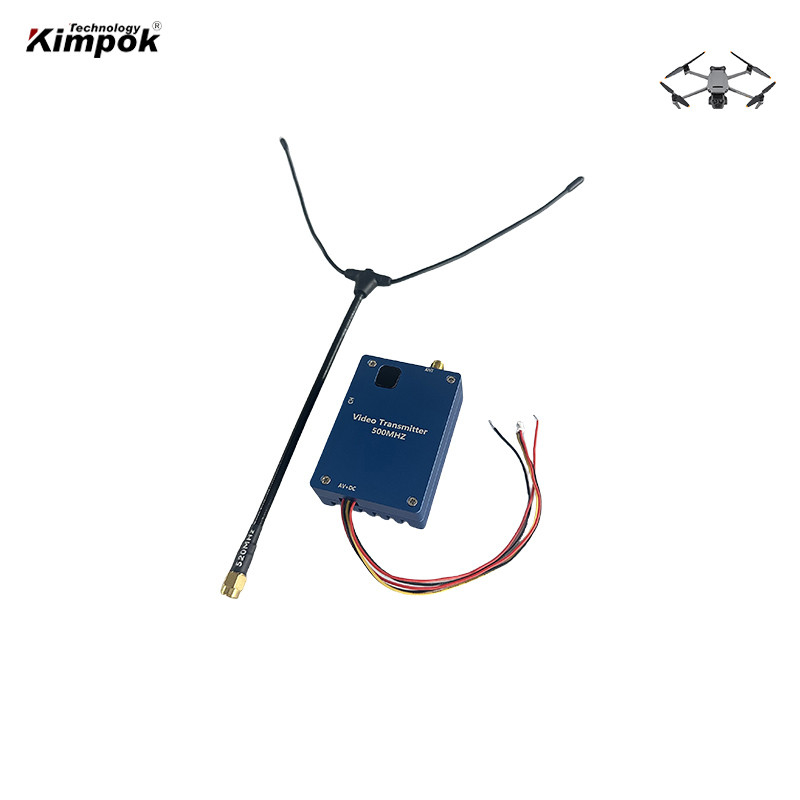

Kimpok 10-20km FPV Video Transmitter and Receiver with 600Mhz Special Frequency
600Mhz 2W VTX Specification:
|
Model number: |
KP-600TX2W |
|
Voltage |
DC 12V |
|
Current |
600mA |
|
Modulation |
FM |
|
Frequency |
600Mhz optional |
|
Channels |
8 channels |
|
Frequency band |
620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz |
|
Transmit Power |
2 watt |
|
Video Output |
1 Vp-p(FM) |
|
Temperature |
-10℃ ~ +50℃ |
|
Antenna port |
SMA |
|
Transmitter Weight |
83g |
|
Dimensions |
64*46*20mm (antenna port not included ) |
600Mhz FPV VRX Specification:
|
Model number: |
KP-RX600 |
|
Voltage |
DC 12V |
|
Receiving sensitivity |
-85dB |
|
Modulation |
FM |
|
Frequency |
600Mhz |
|
Channels |
8 channels |
|
Frequency band |
620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz |
|
Video Output |
1 Vp-p(FM) |
|
Temperature |
-10℃ ~ +50℃ |
|
Antenna port |
SMA |
|
Transmitter Weight |
83g |
|
Dimensions (L * W * H) |
83*68*15mm |
Antenna must be connected before connect to power, otherwise it will be easy to burned-out!
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
