| Place of Origin: | Guangdong, China |
| Brand Name: | KimpoK |
| Certification: | CE |
| Model Number: | KP-12VTX8WR |

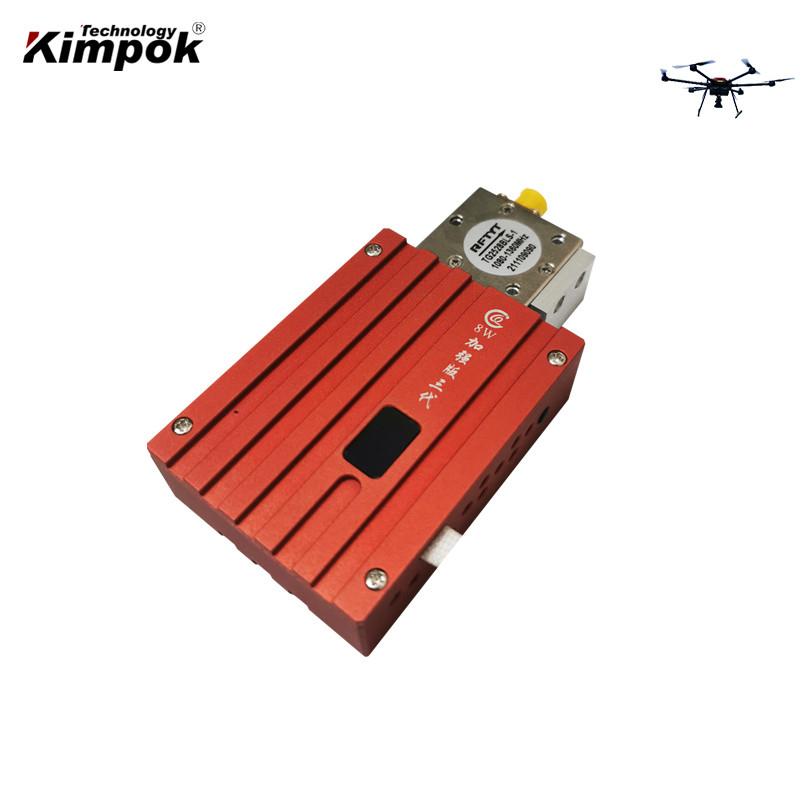

1.2Ghz 8W FPV Red Wireless Video Transmitter for Drone Long range transmission
KP-12TX8WH Wireless Video Transmission Equipment
The KP-12TX8WH wireless video transmission equipment offers excellent performance in various aspects, with a large power margin making it more suitable for complex physical environments. Key features include:
Transmission Range: When using the 0dB (original small antenna) to the full extent, the transmission range in open areas can reach approximately 8 to 15 kilometers. By using a high-gain directional antenna, this range can be extended to 20 kilometers Line of Sight (LOS) on the ground.
Transmitter Technology: The transmitter technology is exquisite, and the special metal construction enhances heat dissipation, making it suitable for long hours of operation.
Signal Input: The equipment utilizes a universal AV interface for signal input, ensuring compatibility with traditional AV interfaces such as cameras, VCDS, and DVDS.
Applications:
Transmitter parameter:
|
Voltage |
DC 12V |
|
Current |
700mA |
|
Frequency |
1.2Ghz (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240Mhz, 1280MHz; 1320Mhz; 1360Mhz) |
|
Number of channels |
8CHs |
|
Transmit Power |
8000mW |
|
Video Output |
1 Vp-p(FM) |
|
Audio Output |
1 Vp-p(FM) |
|
Audio Carrier Ware |
5.5M 6.0M |
|
Distance (Open environment) |
5~10KM |
|
Overall Configuration |
Transmitter, AV cable, antenna |
|
Temperature |
-10℃ ~ +50℃ |
|
Transmitter Weight |
200g |
|
Dimensions (L * W * H) |
95x50x20mm |
Yagi antenna parameter:
|
Category |
Yagi Antennas |
|
Model |
KP-YA8 |
|
Elements |
8 |
|
Frequency Range-MHZ |
1060~1200 |
|
Bandwidth-MHZ |
140 |
|
Gain-dBi |
12 |
|
Horizontal Beamwidth-° |
48 |
|
Vertical Beamwidth-° |
40 |
|
F/B Ratio-dB |
≥16 |
|
VSWR |
≤1.5 |
|
Nominal Impedance-Ω |
50 |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power-W |
100 |
|
Dimcnsions-m |
0.6 |
|
Weight-kg |
0.5 |
|
Ratcd Wind Velocity-m/s |
60 |
|
Connector |
N Type |
|
Mounting Mast Diameter-mm |
30~50 |
