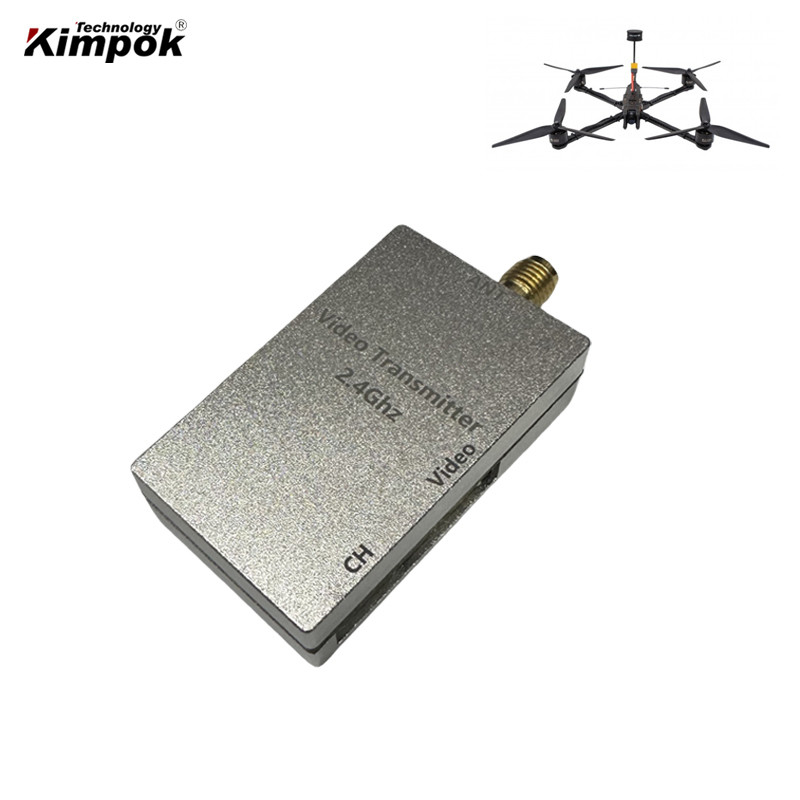

2.4Ghz 1W FPV VTX Wireless Video Transmitter FM Video Link 20km LOS

Name: 2.4Ghz 1W FPV VTX Wireless Video Transmitter FM Video Link 20km LOS
Brand: Kimpok Technology Co., Ltd
SKU: KP-24TX1WD
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	KimpoK
Certification:	CE Cerfication
Model Number:	KP-24TX1WD

Detail Information

Place of Origin:

China

Brand Name:

KimpoK

Certification:

CE Cerfication

Model Number:

KP-24TX1WD

Type:

2.4ghz Wireless Video Transmitter

Frequency:

2.4G

RF Power:

1 Watt

Modulation:

Weight:

50g

Voltage:

DC 12V

Highlight:

High Light

Highlight:

2.4Ghz fpv video transmitter long range

1W fpv video transmitter long range

20km fpv video transmitter and receiver

Trading Information

Minimum Order Quantity:

1 pieces

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 work days

Payment Terms:

T/T, Western Union, PayPal

Supply Ability:

5000pcs/month

Product Description

2.4Ghz 1W FPV VTX Wireless Video Transmitter FM Video Link 20km LOS

2400Mhz VTXDescription:

The KP-24VTX1W wireless video transmission equipment is designed for excellent performance across various aspects, with a large power margin making it highly suitable for complex physical environments. Key features include:

Transmission Range:
- Utilizing the 0dB (Original small antenna) to its full capacity, it ensures a transmission range of approximately 1000-2000 meters in open areas.
- With a high-gain directional antenna, the range can be extended up to 3km, and up to 20km Line of Sight (LOS) for air-to-ground transmission.
Transmitter Technology: Equipped with superb transmitter technology and constructed with special metal for improved heat dissipation, making it ideal for extended operational hours.
Signal Input: Supports a common AV interface for signal input, enabling seamless compatibility with cameras, VCDs, DVDs, and other conventional AV interfaces.

Applications:

Ideal for professional wireless CCTV transmission and reception in CCTV security projects.
Suited for integration into FPV systems, UAVs, RC airplanes/helicopters.
Capable of transmitting video and data signals simultaneously in unmanned vehicle applications.

Specification:

Voltage	DC 12V
Frequency	2.4Ghz
Channels	4 Channels
Transmit Power	1000mW
Video Output	1 Vp-p(FM)
Audio Output	1 Vp-p(FM)
Audio Carrier Ware	5.5M 6.0M
Frequency	2490MHz, 2510MHz, 2390MHz, 2370MHz
Temperature	-10°C ~ +50°C
Transmitter Weight	50g
Dimension	46288mm

2.4Ghz 1W FPV VTX Wireless Video Transmitter FM Video Link 20km LOS 0
