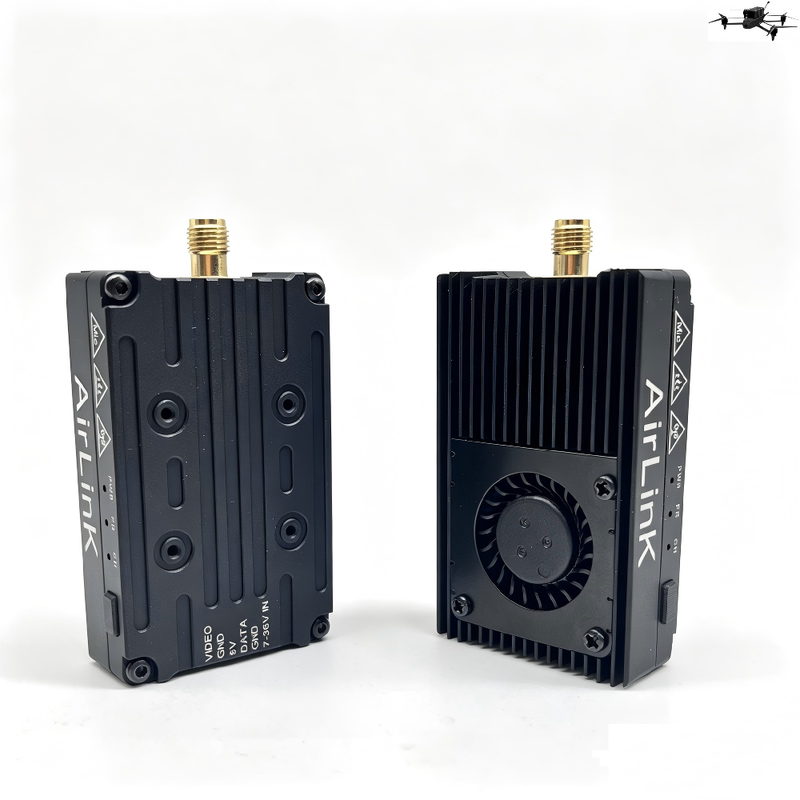

Kimpok AL6710 10W 6.1-7.2GHz 64CH Long Range Video Transmitter Module

Kimpok AL6710 10W 6.1-7.2GHz 64CH Long Range Video Transmitter Module

Product descriptions:

6.1-7.2GHz (6110-7210MHz) 10W 64CH VTX

Key Advantages and Features

1. Ultra-wide Frequency Band (6110-7210MHz)

Covers the 6GHz-7.2GHz spectrum, away from crowded 5.8GHz; far less interference, ideal for urban/complex environments.

• 64 Channels (8 Bands x 8 Channels)

Rich channel options; easy to avoid co-channel interference in multi-drone scenarios.

• 5-Level Power Adjustment: PIT/2.5w/5W/7W/10W

PIT (25mW): For safe, interference-free pit mode.

1W-10W: Flexible for short‑range practice, long-range FPV, or industrial inspection.

Balances range, penetration, and battery life.

• 10W High Power & Strong Penetration

Delivers long-range transmission and better obstacle penetration; supports 10-20km LOS (line-of-sight) in ideal conditions.

• Robust Anti-interference and Stability

6GHz band is less occupied than 5.8GHz; combined with high RF isolation, it resists Wi‑Fi/Bluetooth interference.

• Efficient Thermal Management

Built-in high-speed fan + aluminum alloy heatsink; smart temperature protection prevents overheating at 10W continuous output.

• Wide Voltage Input (12-36V DC)

Compatible with 2-8S LiPo batteries; works for drones, fixed-wing, and industrial UAVs.

• Compact and Durable Design

Sturdy aluminum casing; 20x20mm mounting holes for easy integration; SMA antenna connector for reliable links.

• Easy Operation

Simple button control for band/channel/power; LED indicators for clear status monitoring
