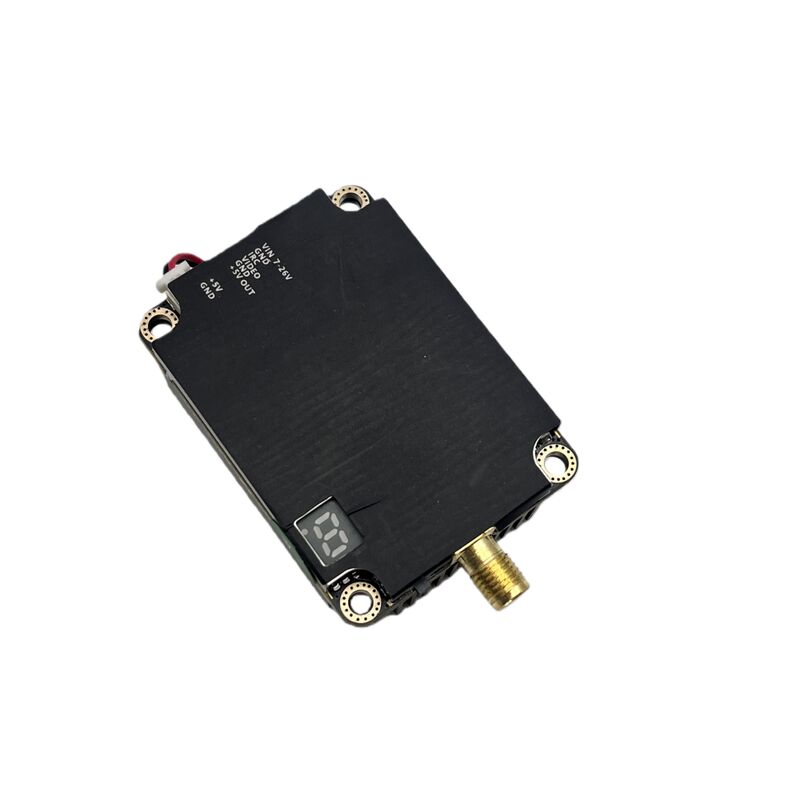

3.3GHz 5W 64CH FPV VTX Wireless Video Transmitter with Adjustable Power Output

Name: 3.3GHz 5W 64CH FPV VTX Wireless Video Transmitter with Adjustable Power Output
Brand: Kimpok Technology Co., Ltd
SKU: ALV3305AC
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Kimpok
Certification:	CE Cerfication
Model Number:	ALV3305AC

Detail Information

Place of Origin:

China

Brand Name:

Kimpok

Certification:

CE Cerfication

Model Number:

ALV3305AC

Type:

Video Transmitter

Power:

Antenna Connector:

SMA

Channel:

64 Channel

Input Voltage:

7-26V

Frequency:

3.3G

Highlight:

High Light

Highlight:

3.3GHz FPV VTX

5W Wireless Video Transmitter

64CH Video Transmitter

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International Standard Packing

Delivery Time:

5-7 work days

Payment Terms:

L/C,Western Union,Paypal

Supply Ability:

3,000 pieces per month

Product Description

3.3GHz 5W ALV3305AC Long-Range 64CH Wireless Video Transmitter with Adjustable Power Output

Professional-grade wireless video transmitter offering exceptional range and flexible power output options for industrial video transmission applications.

Technical Specifications

Input Voltage	7-26V
Output Power	2000mW / 5000mW (Switchable)
Power Supply	5V camera @ under 500mA max
Antenna Connector	SMA
Cable Connector	JST, 6Pin
Dimensions	50×36×16mm, 30×44.5mm (hole)
Weight	40.4g
Kit Contents	1x VTX, 1x cable, 1x ANT

Key Features

64-channel operation with IRC data support
Switchable power output: 2000mW / 5000mW
Built-in cooling fan for optimal thermal management
OSD configuration using IRC protocol
Wide input voltage range (7-26V) with 5V output
Pit Mode support for enhanced operational flexibility

Button Control & Channel Selection

Channel Select: Short press to cycle through 8 channels

Band Select: Press for 2 seconds, then short press to select from 8 bands (A-H)

Power Select: Press for 4 seconds, then short press to switch between 2000mW and 5000mW power levels

P Mode: Press for 5 seconds to enter 0dBm mode, hold for 5 seconds to exit

Safety & Protection Features

Slow Power On: 3-second delay before power amplifier activation prevents damage from maximum instantaneous power

Thermal Protection: Built-in cooling system ensures reliable operation under high-power conditions
