75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC

Name: 75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC
Brand: Kimpok Technology Co., Ltd
SKU: KP-RFPA900
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Kimpok
Certification:	CE certificate
Model Number:	KP-RFPA900

Detail Information

Place of Origin:

Shenzhen,China

Brand Name:

Kimpok

Certification:

CE certificate

Model Number:

KP-RFPA900

Highlight:

High Light

Highlight:

900-980MHz RF linear power amplifier

50dB gain RF amplifier

27VDC RF power amplifier

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

L/C,T/T,Paypal

Supply Ability:

5000pcs/month

Product Description

Long Range 75-100W RF Linear Power Amplifier 900-980MHz 48.5dBm-50dBi PA DC 27V with SMA-Female Input&Output Ports

Product Overview

Professional RF linear power amplifier with high gain and output power for long-range applications in the 900-980MHz frequency range.

Key Specifications

Parameter	Value
Model Number	KP-RFPA900
Frequency Range	900-980MHz (customizable)
Gain	50dBi
Max RF Output Power	50dBm /100W
Working Voltage	27VDC (27V-28V)
Working Current	10A
RF Connectors	SMA-Female
Dimensions	210×110×25mm
Weight	2kg

Detailed Technical Specifications

No.	Item	Specification
1	Frequency Range GSM	900-980MHz (Customized)
2	Gain	50dB
3	Max RF Output Power	48.5dBm-50dBm
4	Input Range	≤10dBm
5	Gain Adjust Range	31dB
6	Gain Adjust Step	1dB
7	In-Band Ripple	2dB
8	Input/Output VSWR	Less 1.5
9	Working Voltage	27VDC
10	Working Current	75W: 8A 100W: 9.1A
11	RF Input/Output Ports	SMA-Female

Optional Features

Shut-down over High VSWR
Shut-down over High temperature
Auto-restart after 30 seconds against shut-down
DB9 Male connector with RS485 interface (includes free PC software)
DB15 Female connector with various control and monitoring functions

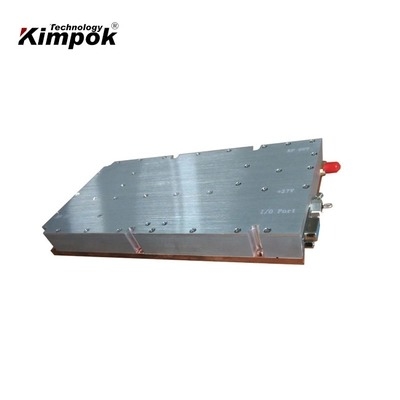

Product Images

Manufacturing Information

Brand Name: Kimpok Technology

Place of Origin: Shenzhen, China

Certification: CE Certification

Port: Hong Kong/Shenzhen

Ordering Information

Minimum Order Quantity: 1 Piece

Price: Negotiation

Packaging: International standard packing

Delivery Time: 3-7 work days

Payment Terms: T/T, PayPal, Alipay

Supply Ability: 5000/month
