5.8GHz Marine GPS Tracking Antenna 18dBi Gain 4900-5850MHz

Product Details:

Detail Information

Highlight:

High Light

Highlight:

5.8GHz marine GPS antenna

high gain 18dBi RF antenna

4900-5850MHz tracking antenna

Product Description

Private Mold Yes 5.8Ghz Marine Wireless GPS Real-time Automatic Tracking Antenna for Seamless Satellite Communication

Basic Information

Place of Origin: China

Brand Name: Kimpok Technology

Certification: CE Certification

Model Number: KP-GPSAT001

Type: Outdoor

Product Overview

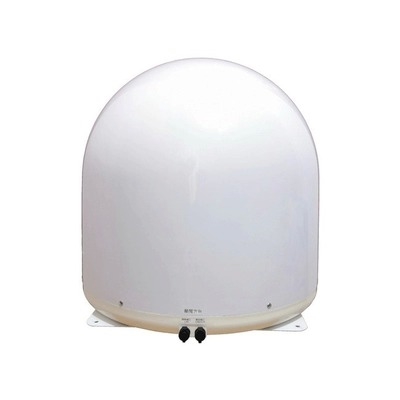

This 5.8Ghz Marine Wireless GPS Antenna provides real-time automatic tracking for seamless satellite communication. Designed for ship-borne microwave systems, it enables communication and automatic target tracking between fixed or dynamic points with preset latitude, longitude, and altitude data.

Key Features

5Hz high-speed GPS real-time automatic attitude calculation and adjustment
360-degree horizontal continuous rotation capability
Integrated high-gain antenna with superior link bandwidth
Miniaturized, lightweight design with high integration
Combines electronic compass, GPS, and high-speed stepper motor
Full-angle 360-degree automatic high-speed AI intelligent system
IP66 weatherproof rating for all-weather operation
Simple installation with single network cable requirement

Technical Specifications

RF Specifications
Operating frequency	4900MHz~5850MHz
Transmit power	27dBm/30dBm
Antenna Gain	18dBi/23dBi
Channel bandwidth	10/20/30/40/80Hz
Bandwidth Rate	300Mbps/866Mbps
Network port type	8pin IP67 aviation head
Modulation type	QPSK/16-QAM/64-QAM/support TDMA

Electromechanical and Control
Horizontal rotation	360 degree continuous rotation
Pitch Adjustment	Auto Pitch Adjustment
Rotation speed	50°/s
Horizontal accuracy	0.24°
GPS frequency	1~5Hz adjustable

Applications

Shipborne, airborne, and vehicle-mounted high-speed networking and video wireless transmission
Maritime patrol ships, coast guard ships, ferries, and law enforcement vessels
Airborne and vehicle-mounted real-time video wireless transmission
Special operating vehicles in mines, protected areas, oil fields, and ports
Public security, traffic emergencies, and emergency rescue command systems
Airborne aerial photography transmission
