75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC
75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC
  • 75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC
  • 75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC

75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Kimpok
Certification: CE certificate
Model Number: KP-RFPA900
Detail Information
Place of Origin:
Shenzhen, China
Brand Name:
Kimpok
Certification:
CE certificate
Model Number:
KP-RFPA900
Highlight:

High Light

Highlight:

900-980MHz RF linear power amplifier

,

75-100W RF amplifier with 50dB gain

,

27VDC RF power amplifier

Trading Information
Minimum Order Quantity:
1
Price:
Negotiation
Packaging Details:
International standard packing
Delivery Time:
3-7 working days
Payment Terms:
L/C,T/T
Supply Ability:
5000pcs/month
Product Description
Long Range 75-100W RF Linear Power Amplifier 900-980MHz
High-Power RF Amplifier with SMA-Female Ports

This 75-100W RF Linear Power Amplifier operates in the 900-980MHz frequency range, delivering 48.5dBm-50dBi output power with 27V DC power supply. Designed for long-range applications, it features SMA-Female input/output ports and advanced protection options.

Technical Specifications
No. Item Specification
1 Frequency Range GSM 900-980MHz (Customizable)
2 Gain 50dB
3 Max RF Output Power 48.5dBm-50dBm
4 Input Range ≤10dBm
5 Gain Adjust Range 31dB
6 Gain Adjust Step 1dB
7 In-Band Ripple 2dB
8 Input/Output VSWR Less than 1.5
9 Working Voltage 27VDC
10 Working Current 75W: 8A
100W: 9.1A
11 RF Input/Output Ports SMA-Female
12 Dimension 210*110*25mm
13 Weight 2kg
Advanced Features
  • Power Supply Interface: Pull-core Capacitance
  • Optional shutdown protection for high VSWR and temperature conditions
  • Auto-restart after 30 seconds following shutdown
  • DB9 Male (Option) with RS485 interface (includes free PC software)
  • DB15 Female interface with multiple attenuation and monitoring options

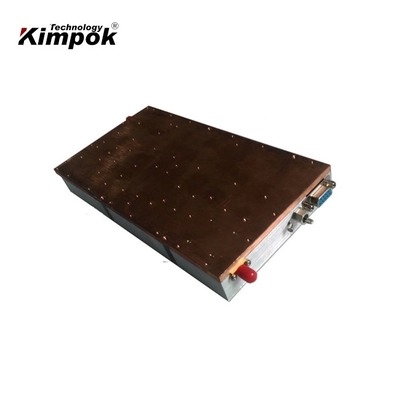

Product Image
75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC 0
