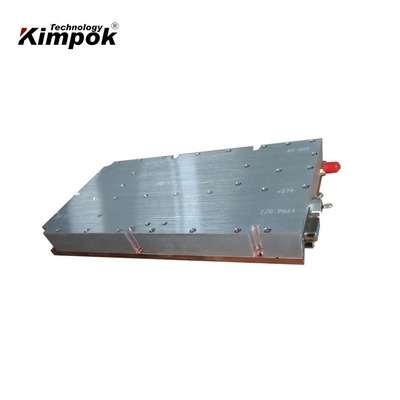

75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC

Name: 75-100W RF Linear Power Amplifier 900-980MHz 50dB Gain 27VDC
Brand: Kimpok Technology Co., Ltd
SKU: KP-RFPA900
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Kimpok
Certification:	CE certificate
Model Number:	KP-RFPA900

Detail Information

Place of Origin:

Shenzhen, China

Brand Name:

Kimpok

Certification:

CE certificate

Model Number:

KP-RFPA900

Highlight:

High Light

Highlight:

900-980MHz RF linear power amplifier

50dB gain RF amplifier

27VDC RF power amplifier

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

L/C,T/T

Supply Ability:

5000pcs/month

Product Description

Long Range 75-100W RF Linear Power Amplifier 900-980MHz

High-performance RF linear power amplifier with 48.5dBm-50dBi output power range, operating at DC 27V with SMA-Female input/output ports.

Key Features

Frequency Range: 900-980MHz (customizable)
High Gain: 50dB with 31dB adjustable range
Maximum RF Output Power: 48.5dBm-50dBm
Compact dimensions: 210x110x25mm
Robust SMA-Female RF connectors
Advanced protection features including over-temperature and high VSWR shutdown

Technical Specifications

No.	Item	Specification
1	Frequency Range GSM	900-980MHz (Customized)
2	Gain	50dB
3	Max RF Output Power	48.5dBm-50dBm
4	Input Range	≤10dBm
5	Gain Adjust Range	31dB
6	Gain Adjust Step	1dB
7	In-Band Ripple	2dB
8	Input/Output VSWR	Less than 1.5
9	Working Voltage	27VDC
10	Working Current	75W: 8A 100W: 9.1A
11	RF Input/Output Ports	SMA-Female
12	Dimension	210x110x25mm
13	Weight	2kg

Advanced Features

Shut-down protection for high VSWR (optional)
Shut-down protection for high temperature (optional)
Auto-restart after 30 seconds following shutdown (optional)
DB9 Male interface option with RS485 communication (includes free PC software)
DB15 Female interface with multiple attenuation and monitoring options
