Frequency Hopping IP Mesh Networking 300-1400Mhz Drone Robot Mesh Link
Product Details
Place of Origin: China
Brand Name: Kimpok technology
Certification: CE Certification
Model Number: KP-500TX5W
Product Name: 500Mhz 5W FPV VTX
Modulation: FM
RF Power: 5 Watt
Power Input: DC 10V~36V
Weight: 83g
Current: 1.2A
Trading Information
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: International standard packing
Delivery Time: 3-7 work days
Payment Terms: T/T, PayPal, Alipay
Supply Ability: 5000/month
Product Description

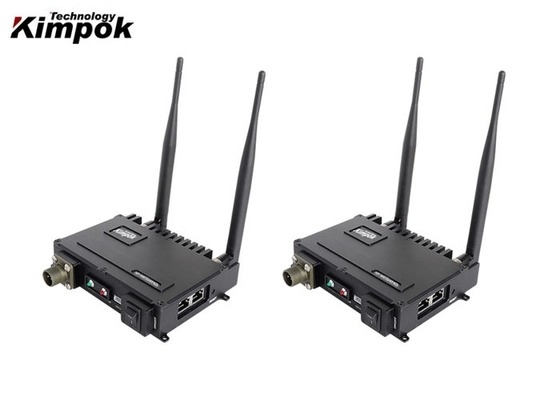

KP-MESH110 is a new robust Ethernet wireless transceiver radio from Kimpok Technology, specially designed for N-LOS (Non line of sight) wireless IP MESH communication. It provides complete bi-directional video data IP networks transmission in complex environments, working as PTP communication and PTMP self-organized networking, with each mesh group supporting up to 32 nodes.
Utilizing OFDM modulation with narrow band technology, it extends coverage range and improves diffraction even in moving conditions. Its compact size, lightweight design, and bridge capabilities make it ideal for motion surveillance with high-quality imaging and emergency communication. Widely used in tactical applications including law enforcement, public security, police, military, fire control, and emergency response.
Main Features
- Up to 36dBm of output power
- Multi-link wireless communication
- Wireless MESH network, bridge and PTZ control combination
- Transmit rate up to 96Mbps
- Long range full duplex and NLOS telecommunication support
- Excellent diffraction and anti-interference capabilities
- High security with 256-bit encryption
- Compact dimensions, lightweight, with heat-dissipating aluminum case
- Highly integrated modular combination design
- Software configurable with topography visualization
Technical Specifications
| Parameter |
Specification |
| Frequency |
300-2500MHz available (select a 100MHz span) |
| Bandwidth |
5M/10M/20M/40MHz (Adjustable) |
| RF power |
30dBm (33dBm/36dBm Optional) |
| Sensitivity |
-102dBm maximal |
| Mode |
Frequency hopping (LTE) |
| Network node |
Up to 32 nodes |
| Working voltage |
DC 12V |
| Working current |
1.2A |
| Working temperature |
-40℃~ +65℃ |
| RF interface |
SMA * 2 |
| Interface |
TTL/RJ45 * 2 (for IP camera or other stream with Ethernet port) |
| Operation |
Manual via Web Software |
| Dimension |
131*103*29mm |
| Weight |
460g |
| Distance (30dBm) |
1~1.5km LOS on ground level
500m NLOS on ground level
15~20km LOS from UAV to ground station |
Frequently Asked Questions
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from first-class universities in China, specializing in communication engineering. We are committed to advancing wireless communication technologies for professional markets.
Q3: Do you have a minimum order quantity?
No MOQ limit - single units are acceptable.
Q4: What kind of product service can I have?
We offer comprehensive OEM & ODM services.
Q5: What is the product warranty?
Two-year warranty with lifelong maintenance support.
Q6: What is the average lead time?
5-7 working days for standard models, 20-30 working days for customized solutions.
Q7: What payment methods do you accept?
Bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply relevant documentation?
Yes, we provide comprehensive documentation including Certificates of Analysis/Conformance, Country of Origin, and other required export documents.
Our Services
- One-stop ODM/OEM solutions
- 24-hour technical support
- Lifelong maintenance (replacement parts charged after first year)
- Professional system design and construction services
As an experienced manufacturer in wireless microwave transmission since 2008, we offer competitive pricing and high-quality products directly from the source.
