RS232/RS485 PTZ Control COFDM Wireless Transmitter for 60W Video and Data Transmission in Outdoor Long Range Environments
Key Product Information
Place of Origin: China
Brand Name: Kimpok Technology
Certification: CE Certification
Model Number: KP-CM60H
Power: DC28V
Video Port: H-D-M-I; SDI; BNC
RF Power: 60W
Modulation: COFDM
Product Highlights
COFDM video transmitter, COFDM transmitter, COFDM wireless video transmitter
Trading Information
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: International standard packing
Delivery Time: 3-7 work days
Payment Terms: T/T, PayPal, Alipay
Supply Ability: 5000/month
Product Description
Outdoor Long Range COFDM Wireless Transmitter 60W Video and Data Transmission RS232/RS485 PTZ Control

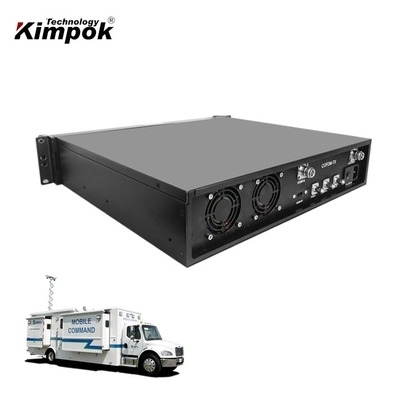

Introduction of long range COFDM video transmitter
The KP-CM60H is a powerful COFDM digital video data transmitter from Kimpok. With latest COFDM modulation, narrow-band, and H.264 encoder technology as its code, the KP-CM60H COFDM HD video voice digital transmitter sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments. The high power and high definition make the KP-CM60H COFDM video transmitter ideal for large UAV super long range video communication and mobile vehicle to vehicle, or mobile vehicle to command center building wireless video communication applications, enabling true long range HD video data transmission.
Special Features
1080P high quality video images transmission
Strong safety with AES user-defined passwords
60Watts high power and low latency
Support NLOS and fast moving environments but still in stable signals transmission
Easy operation by digital panel configuration, and LCD display
Designed in military-grade level
Voice and video long range transmission
Transmitter Configuration Panel
Technical Specifications
| Voltage |
DC28V |
| Bandwidth |
2/2.5/4/8MHz |
| Frequency video |
550MHz-600MHz stepped in 1MHz; other Frequency can be customized |
| Frequency data |
150MHz |
| Modulation |
COFDM 2K |
| RF power |
60W |
| FEC |
1/2, 2/3, 3/4, 7/8 |
| Guard interval |
1/32, 1/16, 1/8, 1/4 |
| Video port |
Analog and HD |
| Data port |
RS232/485 |
| Video resolution |
1080P/i & 720P/i |
| Video coding |
H.264 |
| Video format |
PAL/NTSC |
| Encryption |
AES128/256bits |
| Dimension |
490*450*90mm |
| Weight |
16kg |
| Parameter setting |
user manually setting via LCD display |
