5W 1.2GHz FPV VTX 9CH Video Transmitter 1080MHz-1360MHz

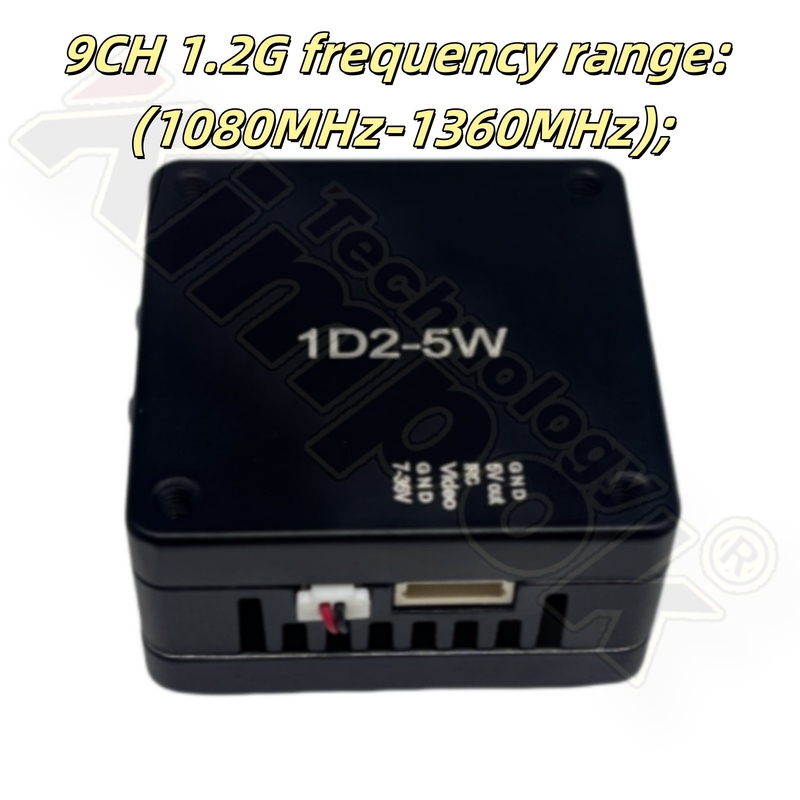

• 9CH 1.2G frequency range: 1080MHz-1360MHz
• Max power: 5W (25mW/5000mW, two level adjustable)
• Input voltage: DC 7V-36V, supporting 2-8S battery input
• Antenna connector: MCX
• Smart audio: IRC Tramp
• Heat-dissipating method: aluminum alloy shell, heat sink & fan
• Hole spacing: 30.5mm×30.5mm /ø3.0mm
• Dimension: 38mm×38mm×20.7mm
• Weight: 38g

• Channel indicator: Red LED
• Band indicator: Blue LED
• Power indicator: Green LED
• Band & Channel changer button
• Power changer button
• 1.0 6P Power connector
• Cooling Fan Power Cable Holder
• MCX antenna connector

Button 4 is used to switch band and channel; every time when button 4 is pressed for a short time to switch to the next channel, the red LED 1 will flash, 1.2.3.4.5.6.7.8.9 in turn. The operation can be cyclic.

Button 5 is the power adjustment button, each short press switches the power by one step, cycling between the two steps of 25mW and 5000mW. The green LED is the power indicator, the status is shown in the following figure, 25mW blinks once, 5000mW blinks twice. Press and hold for 3 seconds to enter pit mode, the green light is always on.

• The VTX must be installed with adequate space to ensure proper air convection for heat dissipation. Otherwise, overheating protection may activate, reducing transmission power or shutting down.
• Before powering on, ensure the correct voltage range and proper polarity to prevent component damage.
• Before powering on, ensure an antenna is properly installed on the RF output to extend module lifespan.
• Please read the instruction manual before use for proper wiring and to maximize module service life.
