| Place of Origin: | Guangdong, China |
| Brand Name: | Kimpok Technology |
| Certification: | CE |
| Model Number: | KP-12VTX1000M |

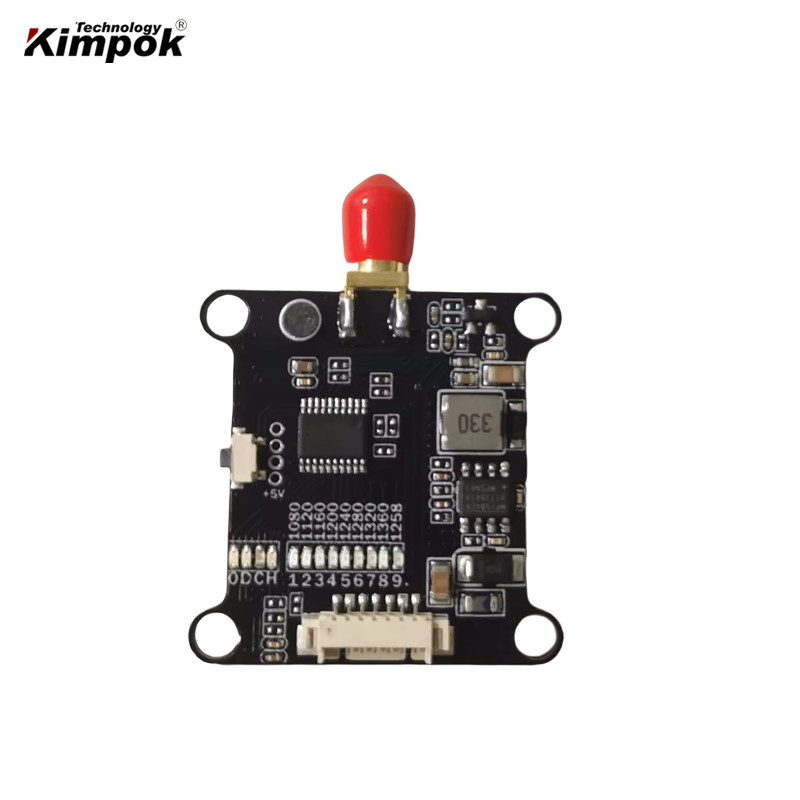

10~20km 1.2GHz 1W FPV VTX 8 Channels Drone Video Transmitter Module
Features & Specifications:
Receiving frequency: 8CH (1080MHz to 1360MHz)
RX Sensitivity: -95dBm
Band-pass filter 950MHz~1450MHz
Power input: 7-36V
Button control and LED indicators
On board regulator output: 5V 2A @ input voltage 6~30V
Current Consumption: 0.3A @5V
Video format: NTSC or PAL
Video Output impedance: 75Ω, Typ.
Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
ANT. input impedance: 50Ω, Typ.
RF Connector: SMA
Weight: 14g ( w/o antanna)
Size: board 45.5*35.6*11.5 mm; 30.5*30.5mm(hole)
Package Included:
1x 1.2/1.3G Video transmitter VTX-1G3-9
1 x 1.2/1.3G Video receiver VRX-1G3
2x Dipole antenna_SMA, center freq 1240MHz
