| Place of Origin: | Guangdong, China |
| Brand Name: | Kimpok Technology |
| Certification: | CE |
| Model Number: | KP-12VTX5W |

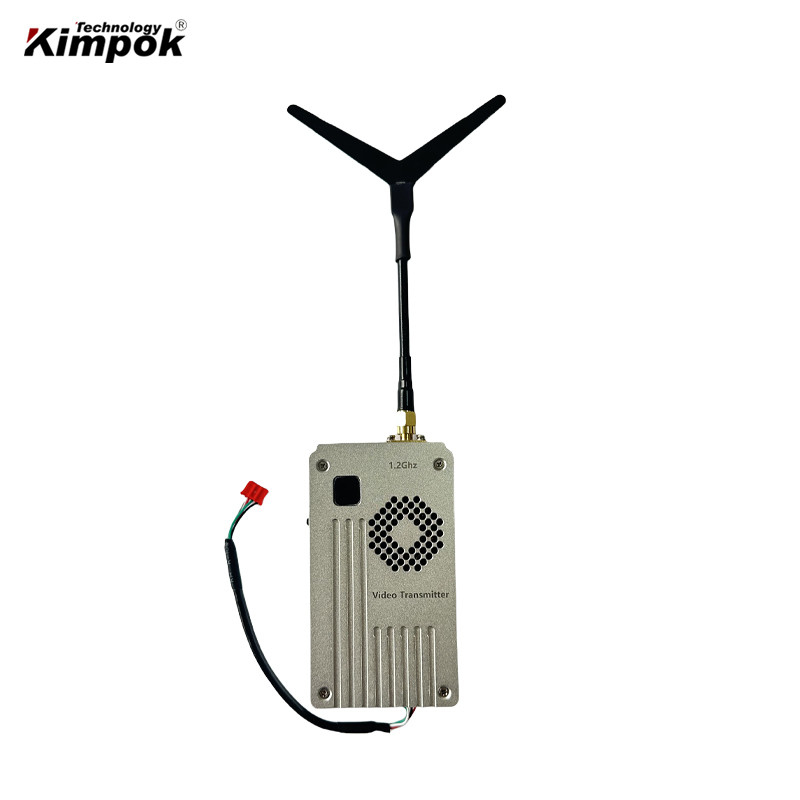

1.2Ghz Analogue Wireless Video Transmitter 1.2G VTX Long Range with 5 Watt RF Power and 0.9Ghz/1.2Ghz/1.3Ghz Frequency
Description:
KP-12VTX5W is a brand-new wireless video transmission device, which adopts FM modulation mode and brand-new frequency, avoiding the 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission that has been used more in the same range, avoiding the same frequency interference, and is more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 3~6km in the open area of the city, and about 40km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).
The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.
The signal input adopts a universal AV interface, which can be easily compatible with all conventional AV interfaces such as cameras, VCDs, DVDs, etc.
KP-12VTX4W is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (data and encryption are customizable).
VTX Specification:
|
Model number: |
KP-12VTX5W |
|
Voltage |
DC 10V~36V |
|
Current |
1.3A |
|
Modulation |
FM |
|
Frequency |
300Mhz~1.2Ghz (optional) |
|
Channels |
8 channels |
|
Frequency band (choose one series) |
300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (580Mhz, 600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz) 700Mhz: (680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz) 800Mhz: (780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz) 900Mhz: (880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz) 1.2Ghz: (1040Mhz~1280Mhz customized) 1.3Ghz: (customization) 2.4Ghz: (customization) |
|
Transmit Power |
5 watt |
|
Video Output |
1 Vp-p(FM) |
|
Temperature |
-10℃ ~ +50℃ |
|
Antenna port |
SMA |
|
Transmitter Weight |
90g |
|
Dimensions |
98*55*18mm (without antenna) |
VRX Specification:
|
Voltage |
DC 10V~18V |
|
Receiving sensitivity |
-85dB |
|
Modulation |
FM |
|
Frequency |
300Mhz~2.4Ghz (optional) |
|
Channels |
8 channels |
|
Frequency band (choose one series) |
300Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (580Mhz, 600Mhz, 620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz) 700Mhz: (680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz, 780Mhz, 800Mhz, 820Mhz) 800Mhz: (780Mhz, 800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz) 900Mhz: (880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1000Mhz, 1020Mhz) 1.2Ghz: (1040Mhz~1280Mhz customized) 1.3Ghz: (customization) 2.4Ghz: (customization) |
|
Video Output |
1 Vp-p(FM) |
|
Temperature |
-10℃ ~ +50℃ |
|
Antenna port |
SMA |
|
Transmitter Weight |
60g |
|
Dimensions (L * W * H) |
75*45*20mm |
