| Place of Origin: | China |
| Brand Name: | Kimpok Technology |
| Certification: | CE Cerfication |
| Model Number: | KP-500VTX4W |

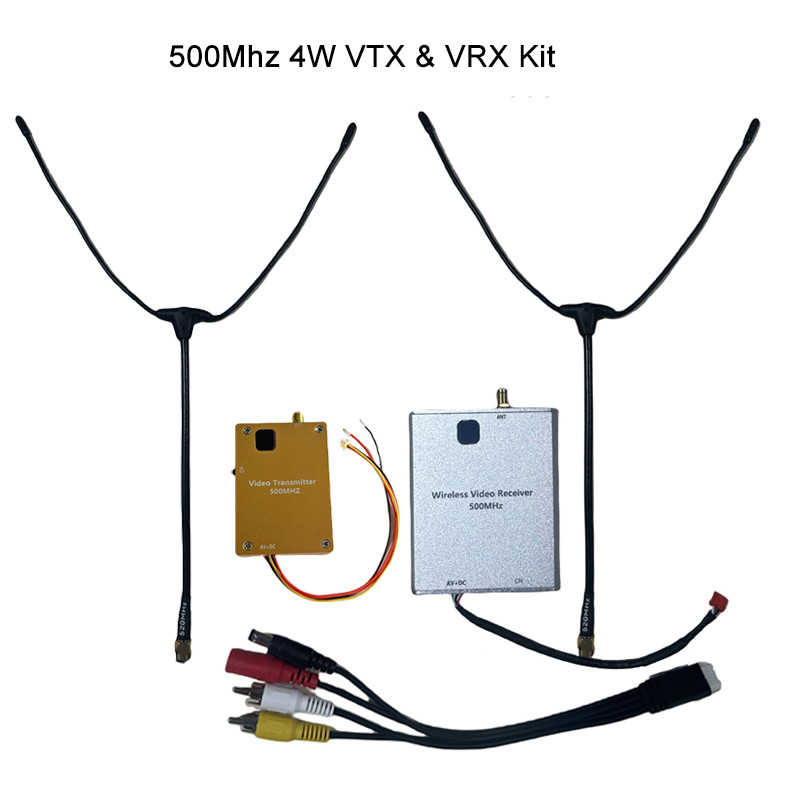

500Mhz FPV Video Link 40km Ultra Long Range Wireless Video Transmitter and Receiver 4 Watt
FPV VTX Specification:
|
			 Model number:  |

			 KP-500VTX4W  |

|
			 Voltage  |

			 DC 12V  |

|
			 Current  |

			 700mA  |

|
			 Modulation  |

			 FM  |

|
			 Frequency  |

			 500Mhz~600Mhz  |

|
			 Channels  |

			 8 channels  |

|
			 Frequency band  |

			 460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz  |

|
			 Transmit Power  |

			 4 watt  |

|
			 Video Output  |

			 1 Vp-p(FM)  |

|
			 Temperature  |

			 -10℃ ~ +50℃  |

|
			 Antenna port  |

			 SMA  |

|
			 Transmitter Weight  |

			 83g  |

|
			 Dimensions  |

			 64*46*20mm  |

VRX Specification:
|
			 Model number:  |

			 KP-VRX500  |

|
			 Voltage  |

			 DC 12V  |

|
			 Receiving sensitivity  |

			 -85dB  |

|
			 Modulation  |

			 FM  |

|
			 Frequency  |

			 500Mhz~600Mhz  |

|
			 Channels  |

			 8 channels  |

|
			 Frequency band  |

			 460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz  |

|
			 Video Output  |

			 1 Vp-p(FM)  |

|
			 Temperature  |

			 -10℃ ~ +50℃  |

|
			 Antenna port  |

			 SMA  |

|
			 Transmitter Weight  |

			 83g  |

|
			 Dimensions (L * W * H)  |

			 83*68*15mm  |

Tips:
To transmit long range, you will need a high gain antenna on VRX side, please contact us to recommend the suitable high gain antenna.
![]()
![]()
![]()
![]()
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
· One-stop ODM/OEM solution;
· 24-hour technical support;
· Lifelong maintenance (Replacement parts will be charged after a year);
· Provide professional system design and construction;
· You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
