| Place of Origin: | Guangdong, China |
| Brand Name: | Kimpok technology |
| Certification: | CE |
| Model Number: | KP-15VTX5W |
60km 300Mhz~1.6Ghz FPV VTX VRX 5W Wireless Video Transmitter and Receiver
Long range FPV VTX Description:

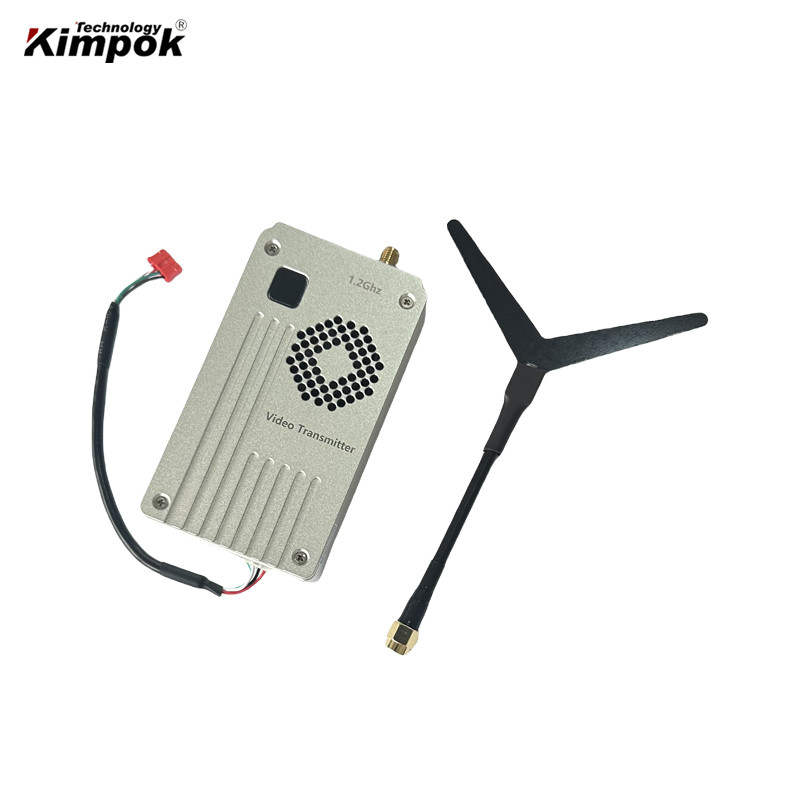

KP-15VTX5W is a brand-new wireless video transmission device, which adopts FM modulation mode and brand-new frequency, with -85dBm high receiving sensitivity, it works with long distance and it is more suitable for use in complex environments, the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 5~10km in the open area of the city, and about 60km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).
The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.
The signal input adopts a universal AV interface, which can be easily compatible with all conventional AV interfaces such as cameras, VCDs, DVDs, etc.
KP-15VTX5W is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (data and encryption are customizable).
60km Drone VTX Specification:
|
Model number: |
KP-15VTX5W |
|
Voltage |
DC 10V~24V |
|
Current |
1.3A |
|
Modulation |
FM |
|
Frequency |
300Mhz~1.5Ghz (optional) |
|
Channels |
8 channels |
|
Frequency band (choose one series) |
300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) 500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz) 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) 1.2Ghz: (1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz) 1.3Ghz: (1300Mhz, 1320Mhz, 1340Mhz, 1360Mhz, 1380Mhz, 1400Mhz, 1420Mhz, 1440Mhz) 1.5Ghz: (1460Mhz, 1480Mhz, 1500Mhz, 1520Mhz, 1540Mhz, 1560Mhz, 1580Mhz, 1600Mhz) |
|
Transmit Power |
5 watt |
|
Video Output |
1 Vp-p(FM) |
|
Temperature |
-10℃ ~ +50℃ |
|
Antenna port |
SMA |
|
Transmitter Weight |
104g |
|
Dimensions |
88*48*2mm (without antenna) |
VRX Specification:
| Voltage | DC 10V~18V |
| Receiving sensitivity | -85dB |
| Modulation | FM |
| Frequency | 300Mhz~2.4Ghz (optional) |
| Channels | 8 channels |
| Frequency band (choose one series) |
300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) 500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz) 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) 1.2Ghz: (1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz) 1.3Ghz: (1300Mhz, 1320Mhz, 1340Mhz, 1360Mhz, 1380Mhz, 1400Mhz, 1420Mhz, 1440Mhz) 1.5Ghz: (1460Mhz, 1480Mhz, 1500Mhz, 1520Mhz, 1540Mhz, 1560Mhz, 1580Mhz, 1600Mhz) |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 83g |
| Dimensions (L * W * H) | 83*68*15mm (antenna port not included) |
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
· One-stop ODM/OEM solution;
· 24-hour technical support;
· Lifelong maintenance (Replacement parts will be charged after a year);
· Provide professional system design and construction;
· You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
