| Place of Origin: | Guangdong, China |
| Brand Name: | Kimpok technology |
| Certification: | CE |
| Model Number: | KP-500VTX4W |

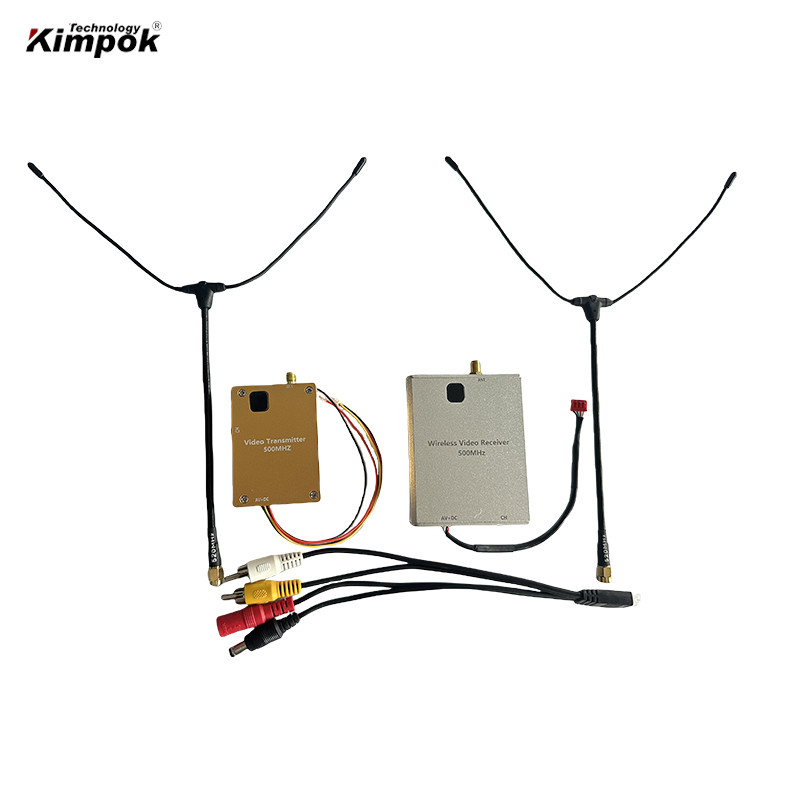

40km 600MHz Drone Video Transmitter 10-36V DC FPV VTX VRX Link 8 Channels
Long Range FPV VTX Description:
It sounds like the new wireless video transmission equipment you are describing is designed to offer improved performance and reliability compared to traditional wireless transmission systems. Here's a breakdown of its key features and capabilities:
Frequency Modulation Mode: By utilizing frequency modulation mode and operating on a new frequency, this equipment aims to avoid interference from common wireless transmission frequencies like 1.2GHz, 1.5GHz, and 2.4GHz. This can enhance signal clarity and stability, especially in complex environments with high interference.
Receiver Sensitivity: The receiver sensitivity of -85dBm indicates that the equipment is capable of receiving signals even at low power levels, ensuring clear and stable transmission of images.
Transmission Range:
Environment Dependence: The transmission distance capabilities may vary in different environments, with the actual range influenced by factors such as terrain, obstacles, and interference. The equipment's performance is optimized for specific working conditions.
Overall, this wireless video transmission equipment appears to be well-suited for applications requiring reliable, long-range video transmission in challenging environments, offering clear and stable image quality over considerable distances both in urban settings and in air-to-ground communications.
FPV Video Transmitter Specification:
|
Product |
Analog video transmitter |
|
Voltage |
DC 10V~36V |
|
Current |
900mA |
|
Modulation |
FM |
|
Frequency |
600Mhz |
|
Channels |
8 channels |
|
Frequency band |
620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz |
|
Transmit Power |
4 watt |
|
Video Output |
1 Vp-p(FM) |
|
Temperature |
-10℃ ~ +50℃ |
|
Antenna port |
SMA female |
|
Transmitter Weight |
83g |
|
Dimensions |
64*46*20mm (antenna port not included) |
FPV VRX Specification:
|
Product |
Analog video receiver |
|
Voltage |
DC 10V~18V |
|
Receiving sensitivity |
-85dBm |
|
Modulation |
FM |
|
Frequency |
600Mhz |
|
Channels |
8 channels |
|
Frequency band |
620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz |
|
Video Output |
1 Vp-p(FM) |
|
Temperature |
-10℃ ~ +50℃ |
|
Antenna port |
SMA female |
|
Weight |
83g |
|
Dimensions |
83*68*15mm (antenna port not included) |
FAQ:
What can I buy from you?
You can purchase COFDM digital AV transmitters, IP mesh radios, analog video transmitters, radio data transceivers, and OEM main boards for transmitters and receivers.
Why should I choose you?
Our core R&D team, originating from a top-tier university in China, specializes in communication engineering. We believe that wireless communication will continue to advance in professional markets, ensuring cutting-edge solutions.
Do you have a minimum order quantity?
No, there is no minimum order quantity. We accept orders starting from just 1 piece.
What kind of product service can I have?
We offer both OEM and ODM services to cater to your specific requirements.
What is the product warranty?
We provide a two-year warranty on our products along with lifelong maintenance support.
What is the average lead time?
For regular models, the average lead time is 5-7 working days. Customized models typically require 20-30 working days.
What kinds of payment methods do you accept?
Payment methods we accept include bank transfers, Western Union, PayPal, and cash payments.
Can you supply the relevant documentation?
Yes, we can provide various documentation, such as Certificates of Analysis/Conformance, Country of Origin documents, and other necessary export documents.
