| Place of Origin: | Guangdong, China |
| Brand Name: | Kimpok technology |
| Certification: | CE |
| Model Number: | KP-500VTX2W |

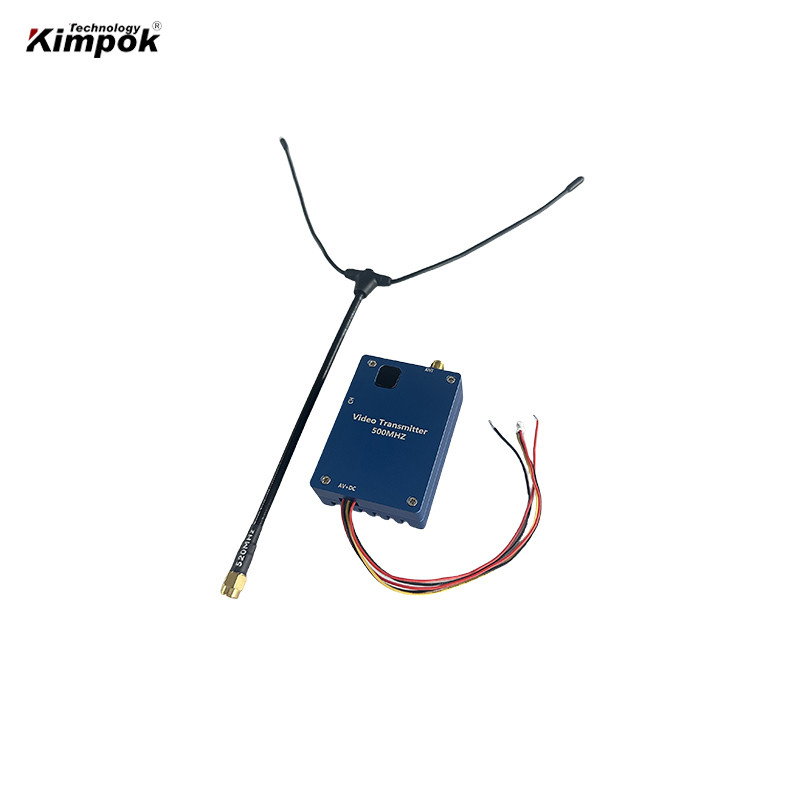

20km 520Mhz Drone VTX 12V-36V With 8 Channels Video Transmitter Receiver
500Mhz FPV VTX Description:
Equipped with a 2W transmit power, this Analog Video Transmitter can efficiently transmit video signals up to 500M, making it ideal for use in unmanned aerial vehicles (UAVs) and other remote applications. The device has been designed to operate under extreme temperature conditions, ranging from -10℃ to +50℃, ensuring reliable and consistent performance in any environment.
The Analog Video Transmitter comes with a power supply of 12V DC, making it easy to install and use. Additionally, it operates in a frequency band of 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, and 620Mhz, providing a wide range of options for transmitting video signals.
Whether you're looking to transmit video signals for surveillance, security, or entertainment purposes, the Analog Video Transmitter is the perfect device for the job. Its compact and lightweight design makes it easy to carry and install, while its powerful performance ensures that you get clear and high-quality video signals every time.
Features:
500Mhz 2W FPV VTX Specification:
|
Model number: |
KP-500TX2W |
|
Voltage |
DC 12V |
|
Current |
600mA |
|
Modulation |
FM |
|
Frequency |
300Mhz~1Ghz optional |
|
Channels |
8 channels |
|
Frequency band |
460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz |
|
Transmit Power |
2 watt |
|
Video Output |
1 Vp-p(FM) |
|
Temperature |
-10℃ ~ +50℃ |
|
Antenna port |
SMA |
|
Transmitter Weight |
83g |
|
Dimensions |
64*46*20mm (antenna port not included ) |
