| Place of Origin: | Guangdong, China |
| Brand Name: | Kimpok |
| Certification: | CE |
| Model Number: | KP-DRB04 |
This is our exclusive design COFDM transmitter and matched receiver. Has a character of low power consumption, small dimension on the transmitter and more adequate considerations provided by us to make it more intuitive and natural.

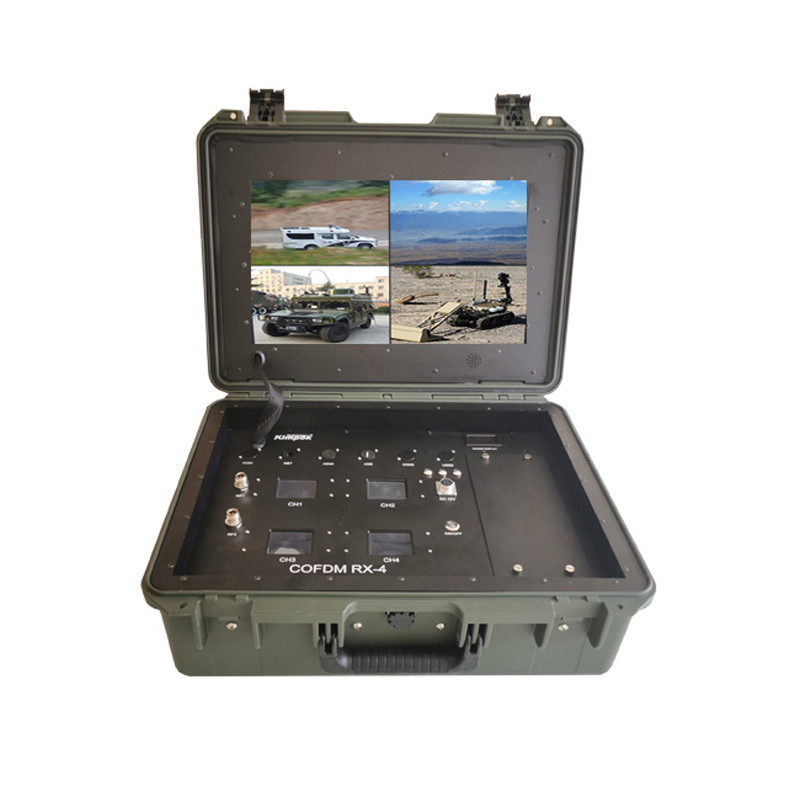

Use H.265 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel suitcase receiver built in with DVR monitor, provide high quality of picture in revolution 1920*1080P/I and short latency. Be with video server, support remote image monitor, dynamic IP, support IE browsing.
This special designed system is for long range distance for tactical application with voice intercom function, which also be popular to use in other fields for live broadcast video audio transmission.
Specification:
|
briefcase portable COFDM radios with remote control |
|
|
Frequency |
300-900MHz/1.2G/2.4G/5.8GHz (optional) |
|
Memory |
1TB, 4 channel 48 hours recording |
|
LCD monitor |
17 inch |
|
RF Level Input |
-105dBm~-20dBm |
|
RF Interface |
N(F) |
|
AV output |
HD-MI, CVBS |
|
Modulation |
COFDM |
|
Power supply |
AC220V / DC12V |
|
Bandwidth |
2/2.5/4/8MHz (adjustable) |
|
Constellation |
QPSK,16QAM,64QM |
|
FEC |
1/2,2/3,3/4,5/6,7/8 (optional) |
|
Guard Interval |
1/32,1/16,1/8,1/4 (optional) |
|
Video Output |
1 line PAL/NTSC analog video |
|
Video Decoding |
H.264/H.265 |
|
Resolution |
1080P; 720P |
|
Audio Output |
Analog stereo left and right channels |
|
Data encryption |
AES 128/256 bits |
|
Voltage |
AC220V±20V, DC14V~DC16V |
|
Work environment |
-30~70°C |
|
Built in Battery |
14.8V, 10.2Ah, support 4ch 48 hours recording |
|
Size |
520*430*210mm |
|
Weight |
22kg |
