| Place of Origin: | China |
| Brand Name: | Kimpok technology |
| Certification: | CE |
| Model Number: | KP-500TX5W |

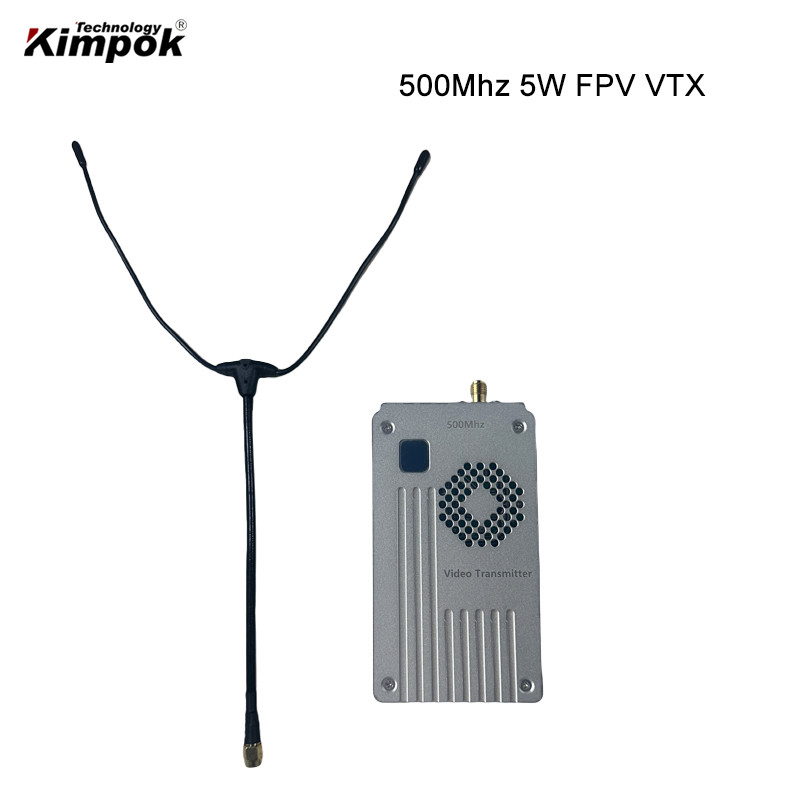

50-60km Drone Video Transmitter 500MHz 5W Wireless Video Transmitter
Description:
This is a brand-new wireless video transmission device, which adopts FM modulation mode and brand-new frequency, avoiding the standard frequency of 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission that has been used more in the same range, and is more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 5~10km in the open area of the city, and about 60km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).
The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.
Equipped with a composite connection cable, it is easier to connect the power supply and camera.
The long range video transmitter and receiver is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (frequencies are customizable).
VTX Specification:
| Product name | Analog video transmitter |
| Voltage | DC 10V~36V |
| Current | 1.3A |
| Modulation | FM |
| Frequency | 300Mhz~1500Mhz (optional) |
| Channels | 8 channels |
| Frequency band (choose one series) |
300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) 500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz) 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) 1.2Ghz: (1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz) 1.3Ghz: (1300Mhz, 1320Mhz, 1340Mhz, 1360Mhz, 1380Mhz, 1400Mhz, 1420Mhz, 1440Mhz) 1.5Ghz: (1460Mhz, 1480Mhz, 1500Mhz, 1520Mhz, 1540Mhz, 1560Mhz, 1580Mhz, 1600Mhz) |
| Transmit Power | 5 watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 104g |
| Dimensions | 98*55*18mm (without antenna) |
VRX Specification:
| Product | Analog video receiver |
| Voltage | DC 10V~18V |
| Receiving sensitivity | -85dB |
| Modulation | FM |
| Frequency | 300Mhz~900Mhz (optional) |
| Channels | 8 channels |
| Frequency band (choose one series) |
300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) 500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz) 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) 1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz) 1.2Ghz: (1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz) 1.3Ghz: (1300Mhz, 1320Mhz, 1340Mhz, 1360Mhz, 1380Mhz, 1400Mhz, 1420Mhz, 1440Mhz) 1.5Ghz: (1460Mhz, 1480Mhz, 1500Mhz, 1520Mhz, 1540Mhz, 1560Mhz, 1580Mhz, 1600Mhz) |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 83g |
| Dimensions (L * W * H) | 75*45*20mm (antenna port not included) |
Antenna must be connected before connect to power, otherwise it will be easy to burned-out!
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
· One-stop ODM/OEM solution;
· 24-hour technical support;
· Lifelong maintenance (Replacement parts will be charged after a year);
· Provide professional system design and construction;
You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
