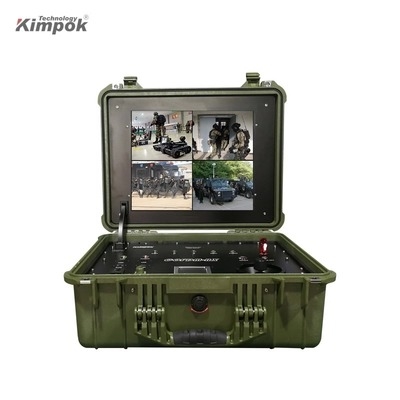

4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P

Name: 4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P
Brand: Kimpok Technology Co., Ltd
SKU: KP-DRB04
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Kimpok
Certification:	CE certificate
Model Number:	KP-DRB04

Detail Information

Place of Origin:

Shenzhen, China

Brand Name:

Kimpok

Certification:

CE certificate

Model Number:

KP-DRB04

Highlight:

High Light

Highlight:

4 channel COFDM HD transmitter

COFDM video transmitter with monitor

1080P COFDM wireless video system

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 working days

Payment Terms:

L/C,T/T,Paypal

Supply Ability:

5000pcs/month

Product Description

1080P&720P Video Resolution 4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver Built-in 17 inch Monitor

Product Details

Place of Origin: China

Brand Name: Kimpok Technology

Certification: CE Certification

Model Number: KP-DRB04

Modulation: COFDM 2K

Channel: 4 Channels

Video Resolution: 1080P/720P

Frequency: 300MHz-4400MHz (subdivided)

Encryption: AES User-defined Password

Monitor: 17 Inch

Key Features

MPEG-2 video compression, DVD video quality
Modular design and highly integrated
17" Standard Samsung LCD screen
Built in with 60G SSD memory
Support 4 channels 48 hours continuously recording
Can support RS485/RS232 and AV signals transmission simultaneously
Data encryption prevents unauthorized access to video and audio
NTSC/PAL automatically adapt, support user adjustable
Supports high-speed mobile NLOS (Non Light Of Sight) reception
Adjustable working frequency, bandwidth, RF power
COFDM modulation for stable signal reception
Customizable with HDM-I/SDI HD interface output

Technical Specifications

Frequency	300-800MHz/1.2G/2.4G/5.8GHz (optional)
Memory	1TB
LCD monitor	17inch
RF Level Input	-105dBm~-20dBm
RF Interface	N(F)
AV output	HDM-I; CVBS
Modulation	COFDM
Power supply	AC220V / DC12V
Bandwidth	2/2.5/4/8MHz (adjustable)
Constellation	QPSK,16QAM
Data control interface	Standard RS232/RS485/TTL level,9600,8,N,1
RS232/RS485 data interface	Standard RS232/RS485 level, support 1200~115200bps
FEC	1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Video Output	1 line PAL/NTSC analog video
Video Decoding	ISO/IEC13818-2 MPEG-2MP@ML
Resolution	1080P
Lines of horizontal	625 or 525 Line
Audio Output	Analog stereo left and right channels
Data encryption	AES 128/256 bits
Voltage	AC220V±20V, DC14V~DC16V
Work environment	-30~70°
Built in Battery	30000mA, support 4ch 48 hours recording
Size	520430210mm
Weight	22kg
