T67 7.2GHz 64CH Diversity VRX Box - Dual Antenna FPV Video Receiver

Name: T67 7.2GHz 64CH Diversity VRX Box - Dual Antenna FPV Video Receiver
Brand: Kimpok Technology Co., Ltd
SKU: T67 VRX
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	CHINA
Brand Name:	kimpok
Certification:	ce cerfication
Model Number:	T67 VRX
Document:	7.2GHz 64CH VRX Box.pdf

Detail Information

Place of Origin:

CHINA

Brand Name:

kimpok

Certification:

ce cerfication

Model Number:

T67 VRX

Document:

7.2GHz 64CH VRX Box.pdf

Wide Operating Voltage:

7–35V

High Receiver Sensitivity:

–95dBm

System:

FPV System

Power Supply Range:

7-36V DC

Output Interface:

SMA - F

Frequency:

4.5Ghz (4500~4685MHz)

Power Supplyd:

DC 7-36V , 2-8S

Output Voltage:

Rf Power:

5 Watt

Strap Type:

Head Strap

Extra Features:

Smart Audio

Voltage Range:

7-36V

Highlight:

High Light

Highlight:

7.2GHz FPV video receiver

64CH diversity VRX box

dual antenna FPV receiver

Trading Information

Minimum Order Quantity:

Price:

negotiation

Packaging Details:

international standard packing

Delivery Time:

3-7work days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

3000piece per month

Product Description

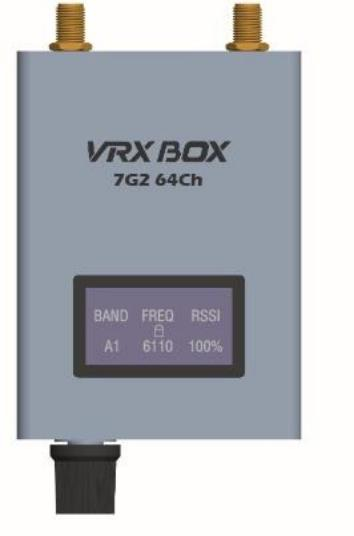

T67 7.2GHz 64CH Diversity VRX Box - Dual Antenna FPV Video Receiver

Key Features

7.2GHz 64 channels with auto-scan and manual tuning
Dual antenna diversity reception for enhanced signal stability
OLED display showing band, frequency, and RSSI in real-time
Wide voltage input: DC 7–35V
Compact and rugged housing with clear interface layout

Product Details

The T67 VRX Box delivers reliable and high-quality video reception for FPV drone systems. Equipped with dual antenna ports and an intuitive encoding switch, it allows easy frequency and band adjustment. The OLED screen provides essential feedback including signal strength and frequency info.

Applications

FPV drone ground stations
Drone racing and freestyle setups
Long-range UAV video monitoring
Educational and industrial drone applications

Technical Specifications

Parameter	Specification
Frequency Range	6110–7210MHz
Channels	64 CH across 8 Bands
Antenna Ports	2 * SMA-F (50Ω)
Input Voltage	DC 7–35V (Max 36V)
Video Output	1Vp-p Composite AV
Sensitivity	–95dBm ±2
Current Consumption	0.18A @ 12V
Display	OLED (Band, Freq, RSSI, Lock Status)
Dimension	83 * 61 * 25mm
Weight	120g

Compliant with FCC standards. Designed for outdoor and recreational FPV use. Always comply with local regulations.
