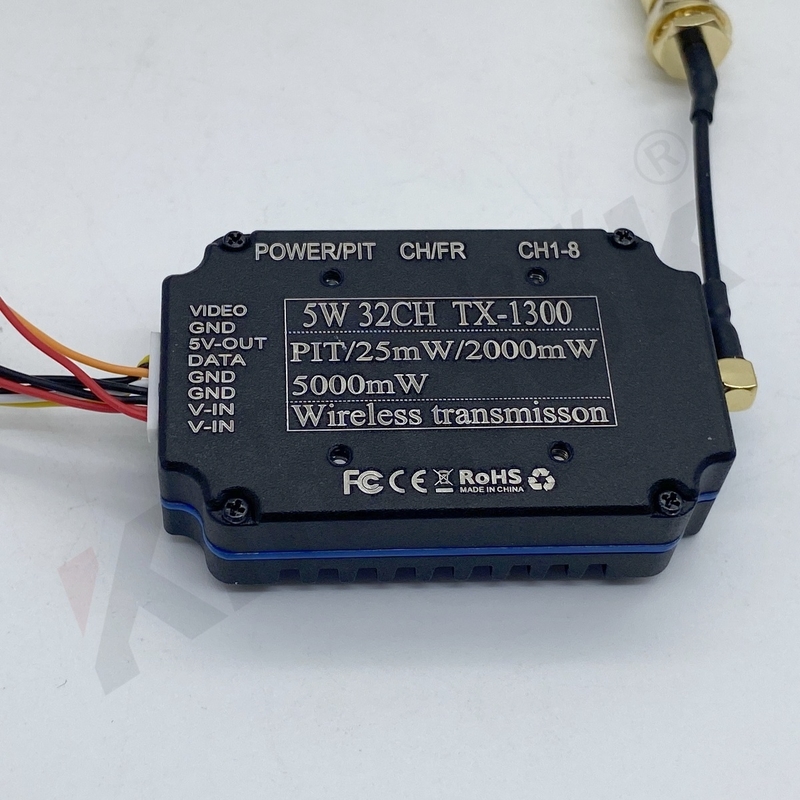

5W High-Power 1.3GHz VTX 32CH 24.5g Ultra-Light FPV Transmitter

Name: 5W High-Power 1.3GHz VTX 32CH 24.5g Ultra-Light FPV Transmitter
Brand: Kimpok Technology Co., Ltd
SKU: 1.3G 5W VTX
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Kimpok
Certification:	CE Cerfication
Model Number:	1.3G 5W VTX
Document:	1.3G 5W VTX User Manual.doc

Detail Information

Place of Origin:

China

Brand Name:

Kimpok

Certification:

CE Cerfication

Model Number:

1.3G 5W VTX

Document:

1.3G 5W VTX User Manual.doc

Channel:

32CH

Frequency Range:

1080MHz- 1420MHz

Supply:

7-36V DC (2-8S)

Weight:

24.5g

Highlight:

High Light

Highlight:

5W FPV transmitter for drone racing

1.3GHz 32CH long range VTX

ultra-light low-latency FPV transmitter

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 work days

Payment Terms:

L/C,Western Union,Paypal

Supply Ability:

3,000 pieces per month

Product Description

5W High-Power 1.3GHz VTX 32CH 24.5g Ultra-Light FPV Transmitter

Key Specifications

Channel	32CH
Frequency Range	1080MHz-1420MHz
Supply	7-36V DC (2-8S)
Weight	24.5g

Product Overview

Ultra-light FPV transmitter designed for high-speed drone racing with long range and low-latency image transmission capabilities.

Technical Specifications

Input voltage: 7-36V DC (2-8S)
Frequency range: 1080 MHz-1420MHz
Output voltage: 5V/0.6A
Power level: Pit/25mW/1000 mW/5000 mW
Control Protocol: VTX (IRC Tramp)
Weight: 24.5g (excluding antenna)
Installation hole spacing: 20mm × 20mm (M2)
Dimensions: 53.5mm × 32.5mm × 15.5mm
Video format: PAL/NTSC
Number of channels: 32CH
Channel selection: Frequency band/frequency point adjustment button
Antenna interface: MMCX
Modulation type: FM

Connection Diagrams

Frequency Channels

CH Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
Band A	1080	1120	1160	1200	1240	1280	1320	1360
POWER	4W	4.5W	5.5W	5.5W	5.5W	4W	3W	2.5W
Band B	1130	1150	1170	1190	1210	1230	1250	1270
POWER	4.8W	5.5W	5.5W	5.5W	5.5W	5.5W	5.5W	4.8W
Band C	1280	1300	1320	1340	1360	1380	1400	1420
POWER	4W	3.5W	3W	2.5W	2.5W	1.8W	1.6W	1.5W
Band D	1100	1120	1140	1160	1180	1200	1220	1240
POWER	4.2W	4.5W	5W	5.5W	5.5W	5.5W	5.5W	5.5W
