15W 5.8GHz FPV Video Transmitter High Power Wireless VTX Drone Accessories

Name: 15W 5.8GHz FPV Video Transmitter High Power Wireless VTX Drone Accessories
Brand: Kimpok Technology Co., Ltd
SKU: KP-T5815
Price: 145.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Kimpok
Certification:	CE Cerfication
Model Number:	KP-T5815
Document:	4.9G-6G 15W 80CH VTX Manual...al.pdf

Detail Information

Place of Origin:

China

Brand Name:

Kimpok

Certification:

CE Cerfication

Model Number:

KP-T5815

Document:

4.9G-6G 15W 80CH VTX Manual...al.pdf

Smart Audio:

IRC Tramp

Input Voltage:

DC 18V-36V (supports 6-8S Battery)

Max Power:

15W (adjustable: 1W/4W/8W/12W/15W)

Frequency Range:

80 Channels

Dimensions:

65.8mm×37.3mm×19.3mm

Highlight:

High Light

Highlight:

5.8G wireless video transmitter

FPV VTX high power

drone remote transmission accessories

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

International standard packing

Delivery Time:

3-7 Work Days

Payment Terms:

L/C,Western Union

Supply Ability:

5,000 pieces per month

Product Description

15W 5.8GHz FPV Video Transmitter High Power Wireless VTX Drone Accessories

Product Specifications

Attribute	Value
Smart audio	IRC Tramp
Cooling	Aluminum alloy heat sink + fan
Input voltage	DC 18V-36V (supports 6-8S battery)
Max power	15W (adjustable: 1W/4W/8W/12W/15W)
Frequency range	80 channels
Dimensions	65.8mm×37.3mm×19.3mm

Product Overview

High-power 5.8GHz FPV VTX for drone remote transmission with adjustable power output and wide frequency range.

Technical Specifications

Frequency range: 4.9GHz-6GHz (80 channels)
Max power: 15W (adjustable: 1W/4W/8W/12W/15W)
Input voltage: DC 18V-36V (supports 6-8S battery)
Antenna connector: SMA female inner hole
Smart audio: IRC Tramp
Cooling: Aluminum alloy heat sink + fan
Mounting hole spacing: 20mm×20mm/ø2mm
Dimensions: 65.8mm×37.3mm×19.3mm
Weight: 48.15g

Functional Features

Channel indicator: Red LED
Band indicator: Blue LED
Power indicator: Green LED
Band & Channel selection button
Power adjustment button
1.0 6P Power connector
SMA female inner hole antenna connector

Frequency Table

Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
Band A	5865	5845	5825	5805	5785	5765	5745	5725
Band B	5733	5752	5771	5790	5809	5828	5847	5866
Band E	5705	5685	5665	5645	5885	5905	5925	5945
Band F	5740	5760	5780	5800	5820	5840	5860	5880
Band R	5658	5695	5732	5769	5806	5843	5880	5917

Usage Guidelines

Ensure adequate ventilation space around the VTX for proper heat dissipation to prevent overheating protection activation
Verify correct voltage range and polarity before powering on to avoid component damage
Always install the antenna before powering on to extend module lifespan
Review the instruction manual before use for proper wiring and optimal performance

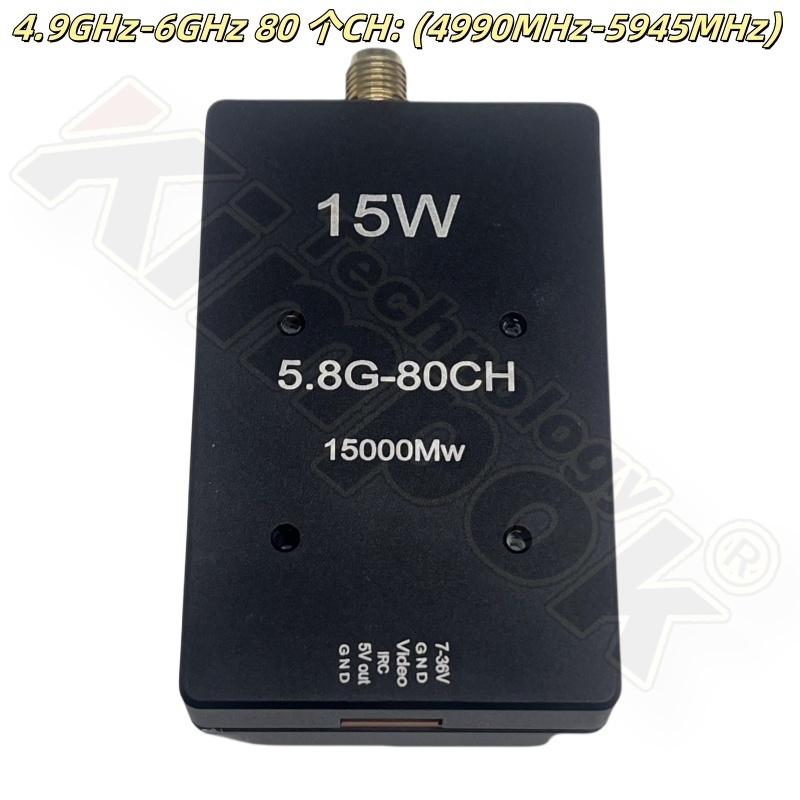

Product Images
